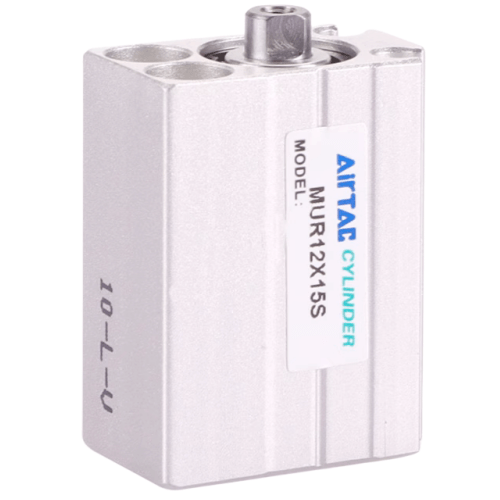

Airtac MUR Compact Free Mount Cylinder MUR12X25
$24.16
Regular price
$31.66
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MUR12X25
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with JIS standards;
2. Four-directional mounting options with tool-free assembly for simplified installation;
3. Modular design allows multi-cylinder parallel mounting, providing space-efficient solutions;
4. Integrated guide boss at front end ensures precise alignment and positioning stability;
5. Precision-honed bore with hard anodizing treatment delivers exceptional wear resistance and extended service life;
6. Optional magnetic piston version enables position sensing functionality;
7. Pre-machined sensor groove facilitates flexible installation of inductive proximity switches;
8. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir chamber
Category: Compact Free Mount Cylinders , Brand: AIRTAC , Series: MUR
Installation tips:
Use alignment jigs during multi-unit parallel mounting. For vertical installations,
add a 0.5mm shim under the lower mounting surface to compensate for thermal expansion.
Lubricate every 500,000 cycles with ISO VG32 hydraulic oil if used in high-humidity environments.
2. Four-directional mounting options with tool-free assembly for simplified installation;
3. Modular design allows multi-cylinder parallel mounting, providing space-efficient solutions;
4. Integrated guide boss at front end ensures precise alignment and positioning stability;
5. Precision-honed bore with hard anodizing treatment delivers exceptional wear resistance and extended service life;
6. Optional magnetic piston version enables position sensing functionality;
7. Pre-machined sensor groove facilitates flexible installation of inductive proximity switches;
8. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir chamber
Category: Compact Free Mount Cylinders , Brand: AIRTAC , Series: MUR
AirTAC MUR Series Compact Cylinder MUR12X25 Technical Details
- Model: MUR12X25
- Bore size: 12mm (0.47in)
- Stroke: 25mm (0.98in)
- Operating pressure: 0.1–0.9 MPa (14.5–130.5 PSI)
- Cushion type: Rubber buffer (both ends)
- Mounting styles: Front flange, rear flange, foot, or side lug (modular combination)
- Port size: M5x0.8 (standard) / PT1/8 (optional)
- Rod thread: M5x0.8 external thread
- Material:
- Tube: Hard anodized aluminum alloy
- End caps: Aluminum alloy
- Piston rod: Stainless steel (SUS304)
- Seal material: Nitrile rubber (NBR) / Optional polyurethane (PU)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Max. theoretical thrust: 82N at 0.63MPa (18.4 lbf at 91.4 PSI)
- Max. speed: 500mm/s (19.7in/s)
- Weight: 0.21kg (0.46lb)
- Dimensions (L×W×H):
- Basic length: 67mm (2.64")
- Full extended length: 67 + 25 = 92mm (3.62")
- Width (foot mount): 30mm (1.18")
- Height (foot mount): 34mm (1.34")
- Protection rating: IP65 (standard rod wiper)
- Lubrication: Pre-lubricated (maintenance-free for 2000km stroke)
Ultra-compact cylinder with multi-position mounting flexibility, featuring a space-saving design 25% smaller than standard ISO cylinders. The modular structure allows combination with other MUR series components. Ideal for high-cycle applications requiring precise linear motion in confined spaces.
Typical Applications:
- PCB handling robots in electronics manufacturing
- Micro-dosing valves in pharmaceutical packaging
- Lens positioning systems in optical equipment
- Paper feed mechanisms in desktop printers
- Probe movement in automated test equipment
Installation tips:
Use alignment jigs during multi-unit parallel mounting. For vertical installations,
add a 0.5mm shim under the lower mounting surface to compensate for thermal expansion.
Lubricate every 500,000 cycles with ISO VG32 hydraulic oil if used in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | MUR12X25 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°C Speed Range: 50-500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | Internal Thread |
| Magnet | Non-magnetic |
| Bore Diameter | 12mm |
| Stroke | <25 mm> |
