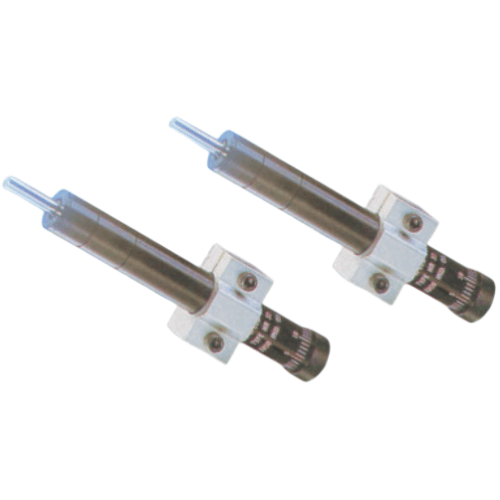

Airtac X-HR Hydraulic Speed Stabilizer X-HR60
2、Specially formulated hydraulic oil within the tube maintains stable viscosity across operational temperature ranges.
3、This design ensures stable and uniform oil discharge from the inner tube, resulting in superior speed stabilization performance. The shaft front end undergoes specialized heat treatment processes for enhanced surface hardening.
AirTAC X-HR60 Hydraulic Speed Stabilizer Technical Details
- Model: X-HR60
- Type: Hydraulic counterbalance valve with adjustable damping
- Port size: 1/4" NPT (G1/4 optional)
- Maximum flow rate: 60 L/min
- Operating pressure range: 0.05-31.5 MPa
- Hydraulic fluid viscosity: 15-400 cSt (ISO VG15 to VG460)
- Adjustment range: 0.05-0.6 MPa (pressure compensation)
- Temperature range: -20℃ to 80℃ (-4℉ to 176℉)
- Seal material: HNBR with PTFE backup rings
- Body material: Anodized aluminum alloy
- Weight: 1.85 kg ±2%
- Dimensions: 152mm(L) × 62mm(W) × 62mm(H)
- Mounting orientation: Horizontal (±5° tolerance)
- Vibration resistance: ≤5.9 m/s² (0.6G)
- Shock resistance: 147 m/s² (15G) for 11ms
- Protection rating: IP67 (when ports are capped)
The X-HR60 features dual-chamber damping with precision needle valve adjustment, providing smooth motion control in high-load hydraulic systems. Its thermal-compensated design maintains consistent performance across temperature fluctuations. Requires 10μm filtration and periodic moisture purging.
- Injection molding machine ejector systems
- CNC machine tool counterbalance mechanisms
- Automated warehouse vertical lift actuators
- Hydraulic press blank holder pressure regulation
- Forestry equipment boom stabilization
Adjustment procedure:
Rotate knob clockwise to increase damping (1 full turn ≈ 0.1MPa change).
Always perform adjustments under no-load conditions. Recalibrate every
2,000 operating hours or 6 months.
Critical note:
Avoid sudden pressure releases - gradually reduce system pressure over
30 seconds before maintenance. Never exceed 80℃ fluid temperature to
prevent HNBR seal degradation.
| Property | Property Value |
|---|---|
| sku | X-HR60 |
