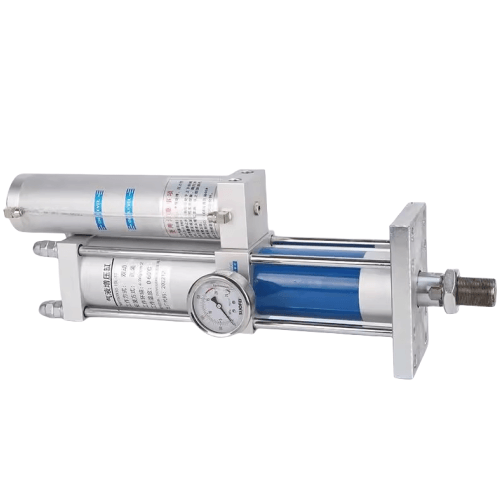

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000051TF
AirTAC X-KAPT6301000051TF Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000051TF
- Type: Two-stage air-oil combined intensifier
- Bore size: 63mm (air chamber) / 50mm (oil chamber)
- Stroke: 100mm (air piston) + 50mm (oil piston)
- Max. working pressure: 0.7-0.8 MPa (air input)
- Boost ratio: 6:1 (max. oil pressure output 42-48 MPa)
- Operating medium: Clean air (ISO8573-1:2010 Class 3) + ISO VG32 hydraulic oil
- Temperature range: -10℃ to 60℃ (with frost prevention below 0℃)
- Port size: G1/2 (air inlet) / M16x1.5 (hydraulic outlet)
- Cycle rate: 30-60 cycles/min (dependent on system configuration)
- Weight: 8.7kg (dry, without oil)
- Dimensions: 320mm(L) × 180mm(W) × 595mm(H)
- Seal materials: Polyurethane (air side) / Nitrile rubber (oil side)
- Rod material: Chrome-plated carbon steel (HRC 45-50)
- Oil capacity: 450±20ml
High-efficiency hybrid intensifier combining pneumatic energy with hydraulic precision, featuring dual-pressure staging for controlled force progression. The self-contained oil reservoir eliminates external hydraulic pumps, with automatic pressure retention during dwell time. Requires 5-40μm filtered air supply and monthly oil level inspection.
- Precision metal forming presses (electronics shielding cans)
- Bearing assembly press-fit systems
- Composite material curing presses
- Automotive brake caliper testing rigs
- Battery cell compression systems
Installation note:
Mount vertically with ±2° tolerance. Allow 100mm front clearance for rod extension.
Pre-lubricate with 5 cycles before full operation. Oil temperature must not exceed 50℃
during continuous operation.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000051TF |
