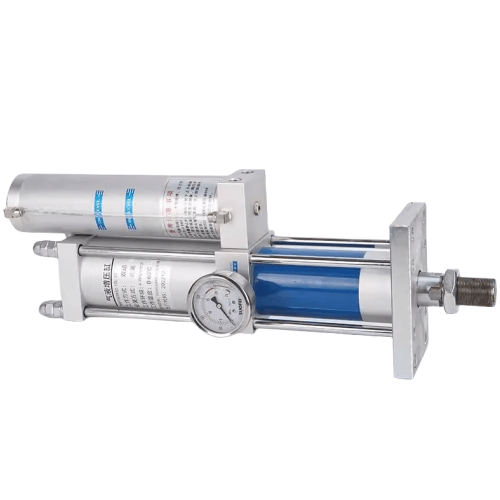

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000053T
AirTAC X-KAPT Pneumatic-Hydraulic Intensifier Cylinder X-KAPT6301000053T Specifications
- Model: X-KAPT6301000053T
- Type: 3-stage gas-liquid combined intensifier
- Bore diameter: 63mm (pneumatic side)
- Stroke: 100mm (standard stroke)
- Intensification ratio: 1:3.5 (adjustable via pressure regulation)
- Maximum output pressure: Up to 210 bar (3046 PSI)
- Operating pressure: 2-8 bar (29-116 PSI) air input
- Hydraulic fluid: ISO VG 32 or equivalent anti-wear oil
- Temperature range: -10℃ to 60℃ (hydraulic oil maintained above 10℃ for optimal performance)
- Port size: G1/4 (pneumatic), M16x1.5 (hydraulic)
- Weight: 8.7 kg (with standard mounting brackets)
- Dimensions: 320mm(L) × 125mm(W) × 185mm(H) (extended length may vary during operation)
- Seal material: Polyurethane/NBR composite
- Cycle rate: 15-30 cycles/min (dependent on stroke length and pressure settings)
- Rod material: Chrome-plated steel with hardened surface (HRC 50-55)
High-efficiency hybrid cylinder combining pneumatic speed with hydraulic force precision. Features pressure-staged intensification technology for controlled power progression, with built-in anti-cavitation hydraulic circuit protection. The triple-sealed design prevents fluid-gas cross-contamination, while the thermal-compensated oil reservoir maintains consistent performance across operating temperatures.
- Precision metal stamping presses (electronics connectors)
- Composite material molding equipment
- Bearing assembly press systems
- Battery cell stacking mechanisms
- Optical lens polishing fixture clamping
- Automotive brake caliper testing rigs
Installation protocol:
Requires horizontal mounting with vibration-damping pads. Perform oil pre-charging (50-60% reservoir capacity) before initial operation.
Maintain 3-5mm alignment tolerance during mechanical linkage installation. Lubricate pneumatic section monthly with ISO VG32 oil mist.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000053T |
