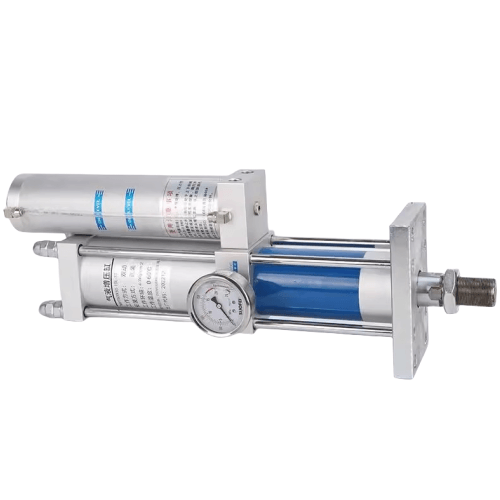

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000053TF
AirTAC X-KAPT6301000053TF Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000053TF
- Type: 2-stage gas-liquid combined intensifier
- Boost ratio: 1:10 (adjustable via pressure regulation)
- Pre-charge pressure: 0.2-0.8 MPa (air input)
- Max. hydraulic output pressure: 8 MPa
- Max. thrust force: 15,700 N (at 0.63 MPa air input)
- Stroke length: 100mm (air cylinder)/50mm (hydraulic cylinder)
- Operating medium: Clean air (ISO 8573-1:2010 Class 3) + ISO VG32 hydraulic oil
- Temperature range: 5℃ to 60℃ (hydraulic oil temp)
- Port sizes: G1/4 (air inlet), M16×1.5 (hydraulic port)
- Weight: 6.8 kg (dry)/7.2 kg (pre-filled)
- Dimensions: 350mm(H) × 130mm(W) × 130mm(D)
- Cycle rate: ≤30 cycles/min (duty cycle 50%)
- Rod end thread: M20×1.5
High-efficiency hybrid cylinder combining pneumatic convenience with hydraulic power precision. Features dual-pressure operation modes (low-pressure fast advance + high-pressure work stroke) and integrated oil reservoir. Anti-leak design with triple-sealed piston rod (NBR+PU backup seals). Requires 5-40μm filtered air and annual hydraulic fluid replacement.
- Sheet metal punching/stamping operations
- Bearing and rivet press-fitting systems
- Plastic injection molding machine auxiliary clamping
- Automotive brake pad compression tooling
- Precision calibration equipment for electronic components
Installation note:
Mount vertically with ±3° tolerance. Always install shock absorbers when stroke exceeds 80mm.
Lubricate guide bushings every 50,000 cycles using ISO VG68 way oil.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000053TF |
