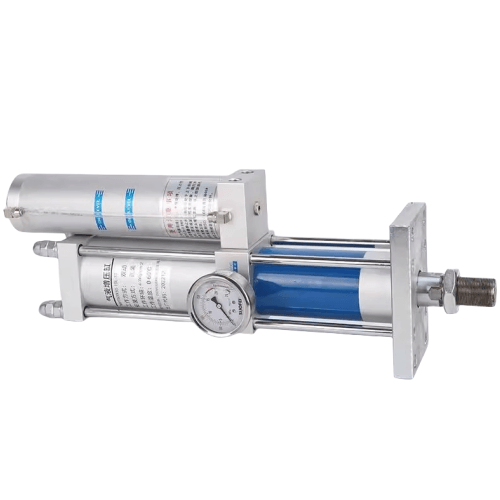

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000053TS
AirTAC X-KAPT6301000053TS Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000053TS
- Type: Two-stage oil-gas isolated intensifier
- Bore size: Ø63mm (air chamber) / Ø40mm (hydraulic chamber)
- Stroke: 100mm (air stroke) + 50mm (hydraulic stroke)
- Max. boost ratio: 1:6.3 (air-to-oil pressure conversion)
- Operating pressure: 0.2-0.8 MPa (air input)
- Max. output pressure: ≤50 MPa (7000 psi)
- Fluid medium: ISO VG68 hydraulic oil (pre-filled)
- Temperature range: -10℃ to 60℃ (oil temp ≤50℃)
- Port size: G1/2 (air inlet) / M16x1.5 (hydraulic output)
- Seal material: HNBR + PTFE composite
- Piston rod material: Chrome-plated stainless steel S45C
- Weight: 12.8 kg (with pre-filled oil)
- Dimensions: 650mm(L) × 180mm(W) × 180mm(H)
- Cycle rate: ≤30 cycles/min (with 2 sec dwell time)
- Oil capacity: 380±20ml
High-efficiency hybrid cylinder combining pneumatic actuation with hydraulic pressure amplification. Features dual-chamber isolation to prevent gas-oil mixing, with precision ground cylinder tubes for minimal friction. The thermal-treated piston rod resists bending deformation under high thrust loads. Requires 40μm filtered compressed air and annual oil replacement.
- Sheet metal punching (3-6mm steel plates)
- Bearing/gear press-fitting in automotive assembly
- Bolt tensioning in wind turbine maintenance
- Plastic injection molding machine clamping
- Hydraulic tool power sources
Installation note:
Mount horizontally with supported rod end. Allow 200mm stroke extension space.
Use shock absorbers when exceeding 15 cycles/min. Lubricate air section weekly with ISO VG32 oil.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000053TS |
