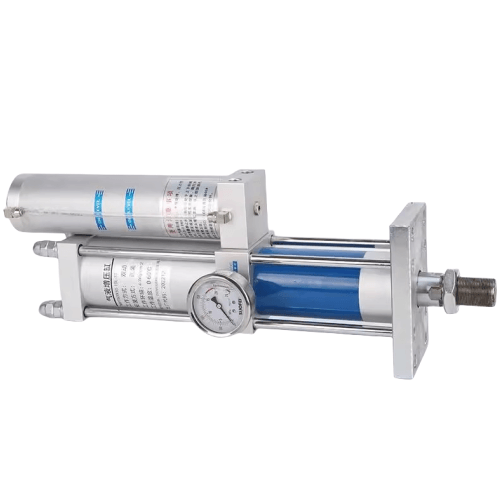

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000101T
AirTAC X-KAPT6301000101T Gas-Liquid Intensifier Cylinder Specifications
- Model: X-KAPT6301000101T
- Type: Hydropneumatic tandem cylinder with pre-charged accumulator
- Intensification ratio: 10:1 (adjustable via pressure regulator)
- Maximum gas pressure input: 0.7-0.8 MPa
- Maximum oil pressure output: 70 MPa
- Oil capacity: 650 cm³
- Stroke length: 100 mm (customizable up to 300mm)
- Operating temperature: -10℃ to 60℃
- Port sizes: G1/4" (gas inlet), M16x1.5 (hydraulic outlet)
- Body material: Hard-anodized aluminum alloy (cylinder), Chrome-plated steel (piston rod)
- Seal material: HNBR with wear-resistant rings
- Weight: 12.8 kg (dry, without fluid)
- Dimensions: 380mm(L) × 180mm(W) × 180mm(H) (excluding mounting brackets)
- Cycle rate: 15-30 cycles/min (dependent on stroke length)
- Fluid compatibility: ISO VG32 hydraulic oil or equivalent
High-force intensifier combining pneumatic efficiency with hydraulic precision, featuring dual-pressure chamber design for smooth transition between rapid approach and high-pressure working stages. Integrated overload protection prevents seal damage during pressure spikes. Requires 5μm filtered air supply and periodic oil level checks.
- Stamping operations in automotive panel forming
- Bearing press-fitting in assembly lines
- Injection molding machine clamping force assistance
- Precision blanking in metal fabrication
- Battery cell compression testing systems
Installation note:
Mount horizontally with supported rod end. Allow 50mm clearance around cylinder for heat dissipation.
Pre-charge accumulator to 70% of max working pressure before initial use. Perform oil replenishment every 50,000 cycles.
