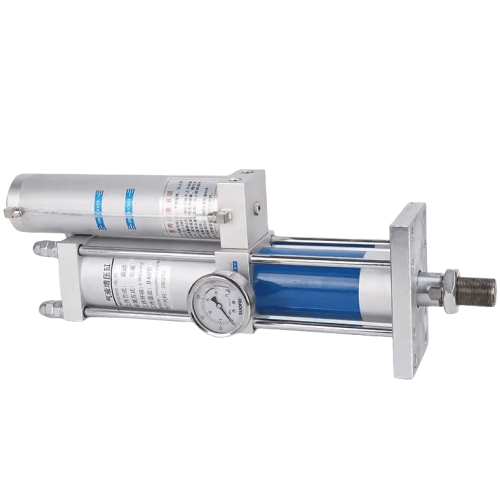

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000103T
AirTAC X-KAPT6301000103T Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000103T
- Type: 3-stage tandem gas-liquid booster cylinder
- Bore diameter: 63mm (pneumatic) / 50mm (hydraulic)
- Boost ratio: 10:1 (max pressure amplification)
- Working pressure:
- Air input: 0.3-0.8 MPa (43.5-116 PSI)
- Hydraulic output: 3-8 MPa (435-1160 PSI)
- Stroke:
- Air piston stroke: 100mm
- Oil piston stroke: 100mm
- Total effective stroke: 100mm
- Output force: 19.6kN (2,000kgf) at 0.5MPa input
- Port size:
- Air inlet: G1/2
- Hydraulic port: M14×1.5
- Venting port: G1/8
- Operating temperature: -20℃ to 80℃
- Fluid compatibility:
- Air side: Lubricated or non-lubricated air
- Oil side: ISO VG32 hydraulic oil
- Material:
- Cylinder body: Aluminum alloy (hard anodized)
- Piston rod: Chrome-plated steel
- Seals: NBR/PU compound
- Weight: 24.7kg (54.5lbs)
- Dimensions: 400mm(L) × 180mm(W) × 180mm(H)
- Cycle rate: 15-30 cycles/min (dependent on stroke utilization)
- Protection rating: IP54 (standard)
A high-efficiency hybrid actuator combining pneumatic speed with hydraulic force precision. Features dual pressure chambers with anti-rotation guide mechanism and built-in hydraulic cushioning. The self-contained oil reservoir eliminates external hydraulic piping, making it ideal for space-constrained industrial automation setups.
- Precision metal stamping and blanking operations
- Battery cell compression in EV manufacturing
- High-force clamping in CNC fixture systems
- Plastic injection molding machine auxiliary units
- Electrical contact crimping processes
Installation & Maintenance:
Must be mounted vertically (±2° tolerance). Requires pre-lubrication of air supply (ISO VG32 oil mist, 1-2 drops/m³). Adjust built-in pressure regulator using 4mm hex key (clockwise for higher output). Perform oil level inspection every 5,000 cycles through side-mounted sight glass.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000103T |
