Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000151TS
AirTAC X-KAPT6301000151TS Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000151TS
- Type: 2-stage gas-liquid hybrid intensifier
- Bore size: 63mm (air piston) / 40mm (hydraulic cylinder)
- Stroke: 100mm (air stroke) + 15mm (hydraulic stroke)
- Max. boost pressure: 1:13.3 ratio (up to 16MPa)
- Operating pressure: 0.1-0.7MPa (air supply)
- Port size: G1/2 (air inlet), M16x1.5 (hydraulic port)
- Weight: 8.6kg (dry, without oil)
- Dimensions: 310mm(L) × 170mm(W) × 285mm(H)
- Temperature range: 5℃ to 60℃ (hydraulic oil dependent)
- Oil capacity: 350ml (ISO VG68 recommended)
- Repeat accuracy: ±0.02mm (with position sensor option)
- Cycle rate: 40-60 cycles/min (pressure-dependent)
- Seal material: Polyurethane/NBR composite

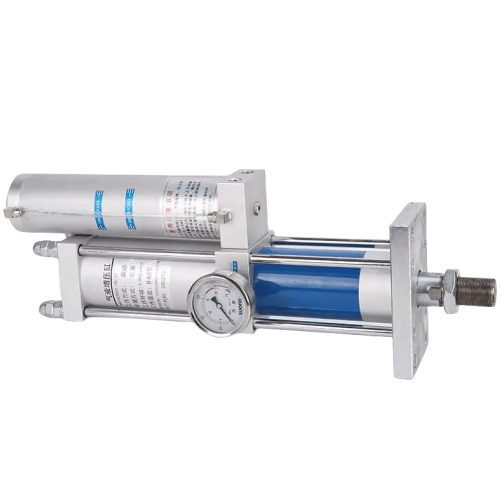

High-efficiency hybrid cylinder combining pneumatic speed with hydraulic precision, featuring dual-stage force amplification. The hardened chromium-plated piston rod and multi-layered sealing system ensure durability in high-cycle applications. Requires separate air and hydraulic circuits with recommended 5μm filtration.
- Sheet metal punching/forming (200-400kN range)
- Bearing press-fitting in automotive assembly
- Plastic injection molding machine clamping
- Precision electronic component crimping
- Battery cell compression testing
Installation note:
Mount vertically with ±3° tolerance. Allow 50mm clearance for stroke extension.
Pre-charge hydraulic oil to 80% capacity before initial operation. Perform 10-15
warm-up cycles at 50% pressure after installation.
- Oil replacement: Every 500,000 cycles or 12 months
- Seal inspection: Every 100,000 cycles
- Pressure decay test: Quarterly (max 5% loss in 5min)
