Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000153T

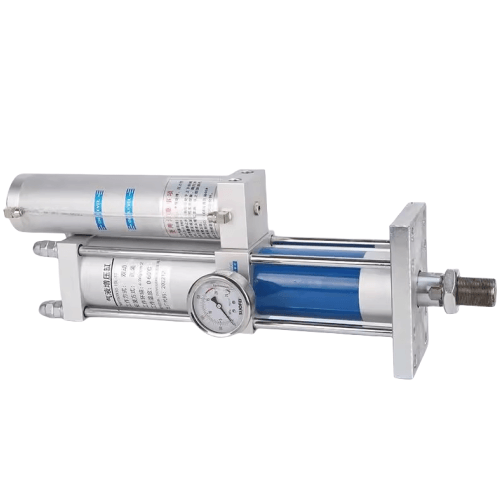

AirTAC X-KAPT6301000153T Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000153T
- Type: 3-stage gas-liquid booster cylinder
- Bore diameter: 63mm (pneumatic end) / 32mm (hydraulic end)
- Stroke: 100mm (air piston) / 15mm (hydraulic output)
- Boost ratio: 10:1 (max pressure amplification)
- Max air pressure: 8 bar
- Output oil pressure: Up to 800 bar
- Fluid medium: ISO VG32 hydraulic oil (pre-filled)
- Operating temperature: 0℃ to 60℃
- Port size: G1/4 (air inlet) / M14×1.5 (hydraulic output)
- Weight: 5.8kg (dry), 6.2kg (pre-filled)
- Dimensions: 320mm(L) × 110mm(W) × 110mm(H)
- Rod material: Chrome-plated steel (HRC 50-55)
- Seal type: HNBR seals with wear-resistant guide rings
- Cycle rate: ≤60 cycles/min (recommended)
High-efficiency hybrid intensifier combining pneumatic energy with hydraulic precision. Features oil-gas isolation design preventing fluid contamination, with built-in overload protection via mechanical pressure relief valve. Pre-lubricated for immediate operation, requires 40μm filtered compressed air supply.
- Sheet metal stamping/punching operations
- Plastic injection mold clamping systems
- Bearing and shaft press-fitting stations
- High-pressure fixture locking in CNC machining
- Bushings compression in automotive assembly
Installation note:
Mount vertically with ±2° tolerance. Pre-charge hydraulic chamber using
manual oil-fill port before initial operation. Maintain 1:1000mm
perpendicularity between cylinder axis and load direction.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000153T |
