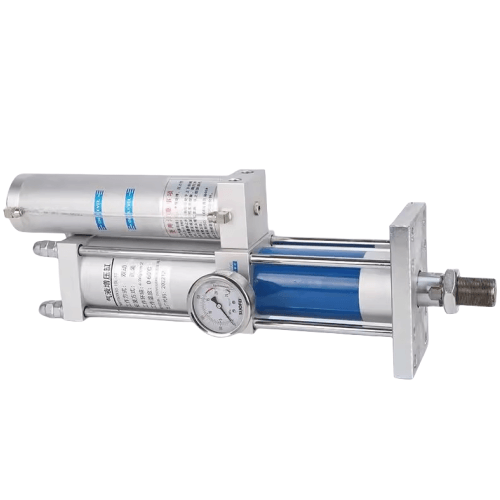

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000153TF
AirTAC X-KAPT Series Gas-Liquid Intensifier Cylinder X-KAPT6301000153TF Specifications
- Model: X-KAPT6301000153TF
- Type: Gas-liquid combined intensifier cylinder
- Bore size: φ63mm (main cylinder)
- Stroke: 25mm (intensifier stroke)
- Max. working pressure: 200 bar (hydraulic side)
- Pressure ratio: 1:10 (air-to-oil)
- Operating medium: Clean air (0.3-0.8 MPa) + ISO VG32 hydraulic oil
- Temperature range: -10℃ to 60℃
- Port size: G1/4 (air inlet), M16x1.5 (hydraulic port)
- Cushioning: Adjustable hydraulic cushioning
- Seal material: NBR + polyurethane
- Repeat accuracy: ±0.02mm
- Weight: 18.5kg (with oil filled)
- Dimensions: φ63mm × 305mm (L) × 180mm (mounting base width)
- Protection rating: IP54
- Mounting orientation: Vertical/horizontal (requires oil replenishment port upward)
High-force intensifier combining pneumatic efficiency with hydraulic stability, featuring dual-stage pressure amplification through gas-liquid conversion. The self-contained oil reservoir minimizes external hydraulic connections, with precision-ground chrome-plated rods for wear resistance. Requires air prep unit with 5μm filtration.
- Automotive press fitting (wheel bearings, bushings)
- PCB laminate pressing and electronic component assembly
- Sheet metal embossing and micro-forging operations
- High-torque fastener tightening systems
- Composite material compression molding
Maintenance note:
Monitor oil level monthly through inspection window (minimum 80% fill).
Use only specified ISO VG32 anti-wear hydraulic oil.
Pre-lubricate air supply with 1-2 drops of turbine oil per cycle for optimal seal life.
- Set air regulator to initial 0.5 MPa
- Engage intensifier via 4-way valve
- Gradually increase pressure using hydraulic relief valve
- Verify using calibrated pressure gauge (max. 200 bar)
