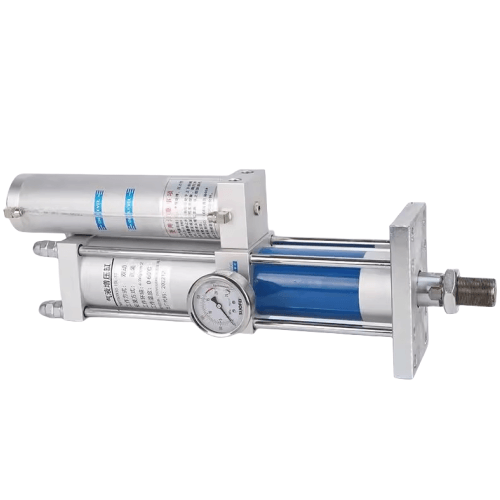

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000201TS
AirTAC X-KAPT6301000201TS Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000201TS
- Type: 2-stage gas-liquid combined intensifier
- Bore diameter: 63mm (pre-pressure) / 50mm (boost stage)
- Stroke: 100mm (pre-stroke) + 20mm (boost stroke)
- Boost ratio: 10:1 (air-to-oil pressure conversion)
- Max. output force: 15,500N (at 0.7MPa air input)
- Operating pressure: 0.3–0.8 MPa (air input)
- Operating media: Filtered air (40μm) & ISO VG68 hydraulic oil
- Temperature range: -20℃ to 80℃
- Port size: G1/4 (air inlet) / M16x1.5 (hydraulic port)
- Weight: 8.7kg ±2% (with standard oil filling)
- Dimensions: 350mm(L) × 130mm(W) × 130mm(H)
- Cycle rate: ≤30 cycles/min (dependent on stroke utilization)
- Cushioning: Adjustable hydraulic damping at terminal positions
- Rod end: M20x1.5 male thread (ISO standard)
High-efficiency hybrid cylinder combining pneumatic speed with hydraulic force precision. Features dual-pressure operation mode (low-pressure fast approach → high-pressure slow pressing) with automatic oil replenishment system. Hard chrome-plated piston rod with triple sealing (U-cup + O-ring + wear ring) ensures leak-free operation.
- Sheet metal punching/forming in automotive stamping lines
- Bearing press-fitting for electric motor assembly
- Precision crimping of high-voltage connectors
- Composite material compression molding
- Bushing installation in heavy machinery maintenance
Installation guidelines:
Mount vertically with ±3° tolerance. Maintain 200mm clearance below rod end for overstroke protection.
Pre-lubricate via oil filler port before first use. Adjust cushioning screws clockwise to increase damping force.
Critical note:
Never exceed 80% of maximum stroke in continuous operation.
Requires monthly oil level inspection - maintain between 80-90% of sight glass window.
