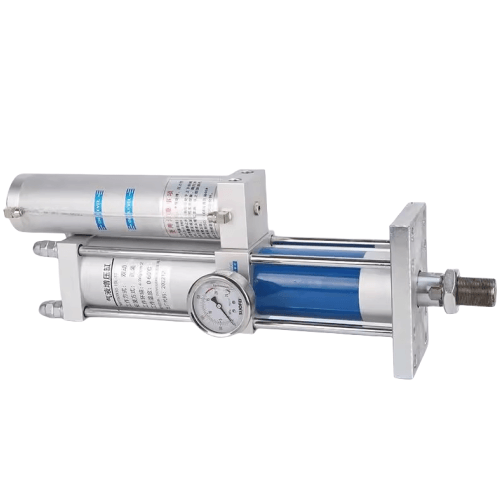

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000203T
AirTAC X-KAPT6301000203T Gas-Liquid Intensifier Cylinder Specifications
- Model: X-KAPT6301000203T
- Type: 3-stage gas-liquid combined intensifier
- Operating pressure: 2–8 bar (gas input)
- Output pressure: Up to 1,200 bar (hydraulic output)
- Intensification ratio: 1:160
- Stroke length: 200mm (pre-stroke) + 20mm (boost stroke)
- Bore diameter: 63mm (air piston) / 16mm (hydraulic piston)
- Rod diameter: 25mm (chrome-plated)
- Medium: Air (drive side) / ISO VG68 hydraulic oil
- Temperature range: -10℃ to 60℃
- Port size: G1/2 (air inlet) / M14×1.5 (hydraulic output)
- Weight: 12.5kg (dry, without oil)
- Dimensions: 300mm(L) × 130mm(W) × 130mm(H)
- Body material: Aluminum alloy (air cylinder) / Chrome-molybdenum steel (hydraulic chamber)
- Seal material: Polyurethane (standard) / Fluorocarbon optional
- Cycle rate: ≤30 cycles/min (with 1 sec dwell time)
High-efficiency hybrid intensifier combining pneumatic convenience with hydraulic precision. Features dual pressure relief valves and built-in oil replenishment system. The T-slot mounting design enables 360° adjustable installation. Requires external hydraulic reservoir (min. 200ml capacity).
- Sheet metal punching/stamping (0.5-3mm thickness)
- Bearing press-fitting in automotive assembly
- Plastic injection molding machine clamping
- Battery cell compression testing
- Precision bolt tensioning systems
Operation note:
Always pre-lubricate hydraulic chamber before first use.
Maintain oil level above 60% capacity. Vertical installation
recommended for optimal air exhaust. Allow 2-minute
cool-down after continuous 15-minute operation.
