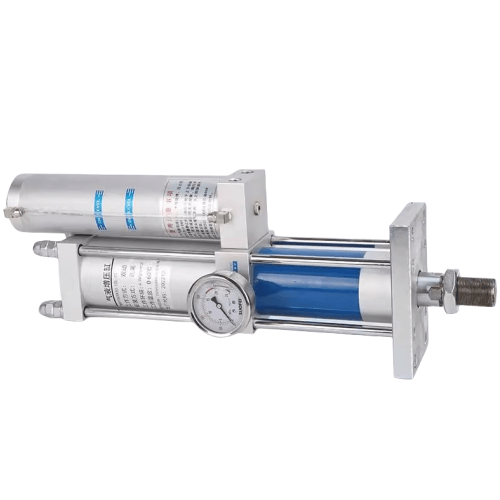

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000203TF
AirTAC X-KAPT6301000203TF Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000203TF
- Type: 3-stage gas-liquid combined booster cylinder
- Max. working pressure (air): 8.3 bar
- Max. hydraulic output pressure: 1,500 bar
- Bore size: 63mm (air piston) / 20mm (hydraulic piston)
- Stroke: 100mm (pre-stroke) + 20mm (boost stroke)
- Port size: G1/4 (air inlet) / M16x1.5 (hydraulic port)
- Operating medium: Filtered air (40μm+) & ISO VG68 hydraulic oil
- Temperature range: -10℃ to 60℃ (hydraulic section limited to 50℃)
- Cycle rate: ≤30 cycles/min (dependent on oil replenishment)
- Weight: 8.7 kg (empty) / 9.2 kg (oil-filled)
- Dimensions: 320mm(L) × 160mm(W) × 200mm(H) (excludes mounting accessories)
- Rod end thread: M20x1.5 male
- Seal material: Polyurethane/NBR compound
- Housing material: Anodized aluminum alloy (air section) / Chrome-plated steel (hydraulic)
High-force compact intensifier combining pneumatic efficiency with hydraulic precision. Features automatic oil replenishment system and anti-cavitation design. The three-stage amplification mechanism enables 180:1 pressure ratio while maintaining smooth stroke transition. Built-in shock absorber minimizes end-position impact.
- Bushing/shaft interference fitting in automotive assembly
- PCB laminate pressing with controlled tonnage
- Bearing preload adjustment in precision machinery
- Hydraulic tool power source for maintenance operations
- Sheet metal embossing/forming with force profiling
Installation note:
Mount vertically ±2° tolerance. Requires 500-hour hydraulic oil replacement cycle.
Always install air lubricator (ISO VG32 oil mist) upstream. For intermittent high-force
operations, allow 10s cool-down between cycles.
