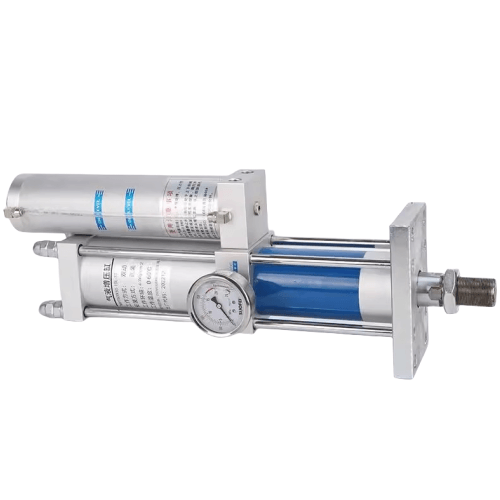

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000301T
AirTAC X-KAPT6301000301T Gas-Liquid Intensifier Cylinder Specifications
- Model: X-KAPT6301000301T
- Type: Single-acting gas-liquid combined intensifier
- Bore size: Ø63mm (air chamber) / Ø100mm (oil chamber)
- Stroke: 30mm (pre-stroke) + 30mm (intensified stroke)
- Max. thrust force: 31,400N (at 0.7MPa air input)
- Intensification ratio: 1:15.7
- Operating pressure: 0.2–0.7 MPa (air input)
- Output oil pressure: Up to 11MPa
- Fluid medium: ISO VG68 hydraulic oil (pre-filled)
- Operating temperature: 5℃ to 60℃
- Port size: G1/2 (air inlet), M14×1.5 (hydraulic outlet)
- Weight: 8.2kg (dry, without accessories)
- Dimensions: 340mm(L) × 180mm(W) × 180mm(H)
- Seal material: Polyurethane (air side), Nitrile rubber (oil side)
- Repeat accuracy: ±0.1mm
- Mounting orientation: Vertical only
High-precision hybrid intensifier combining pneumatic efficiency with hydraulic stability. Features dual-pressure operation with automatic oil replenishment system and overload protection. The chrome-plated cylinder rod and anodized aluminum body ensure corrosion resistance in humid environments. Requires clean dry air (40μm filtration, dew point -20℃).
- Precision metal stamping (e.g., connector pins)
- Bearing press-fitting in automotive assembly
- Plastic injection molding machine clamping
- Battery cell compression testing
- Glass panel laminating processes
Installation note:
Mount vertically with ±2° tolerance. Allow 50mm clearance for oil reservoir expansion.
Pre-lubricate air inlet with 1-2 drops of ISO VG32 oil monthly. Avoid rapid cycling >30 strokes/minute.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000301T |
