Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000303T
$847.23
Regular price
$854.73
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-KAPT6301000303T
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

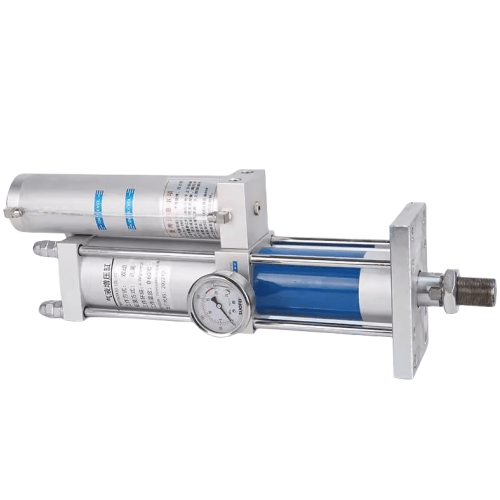

AirTAC X-KAPT6301000303T Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000303T
- Series: X-KAPT 6th Generation Compact Series
- Amplification Ratio: 3:1 (Adjustable via pressure regulation)
- Pre-press Stroke: 30mm
- Intensified Stroke: 100mm
- Max. Output Force: 3,150kgf (at 7MPa air supply)
- Operating Pressure: 0.2-0.7MPa (Air), 3-30MPa (Hydraulic)
- Operating Medium: Filtered air (40μm) + ISO VG68 hydraulic oil
- Temperature Range: -10℃ to 60℃ (with optional low-temp seals)
- Port Sizes: G1/2" (Air Inlet), M16x1.5 (Hydraulic)
- Weight: 8.7kg (Dry), 9.2kg (Oil-filled)
- Dimensions: 180mm(D) × 130mm(W) × 365mm(H)
- Cycle Rate: 15-30 cycles/min (pressure-dependent)
- Position Repeatability: ±0.02mm
- Rod Material: Chrome-plated SCM435 steel
Hybrid intensifier combining pneumatic speed with hydraulic stability, featuring dual-stroke control and oil self-compensation. The T-suffix model includes thermal expansion compensation and anti-cavitation design. Requires separate air/oil circuits with 5-10μm filtration.
Typical Applications:
- Precision metal stamping with controlled deformation
- Bearing press-fitting in automotive assembly
- Composite material molding processes
- High-force clamping in CNC fixtures
- Battery cell compression testing
Installation note:
Mount vertically with ±2° tolerance. Allow 50mm clearance for stroke extension.
Perform oil replenishment every 50,000 cycles using specified ISO VG68 fluid.
Critical:
Always install shock absorbers when exceeding 20 cycles/min.
Avoid side-load forces >5% of max thrust capacity.
