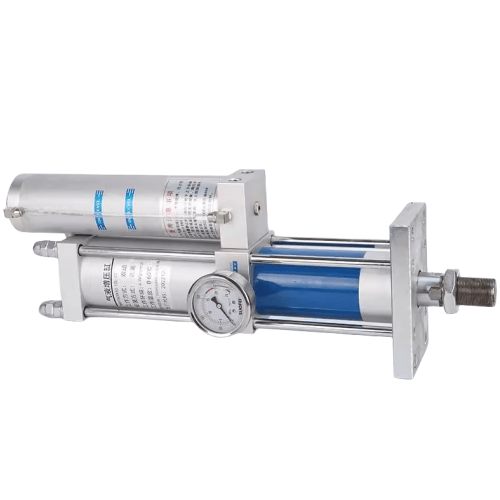

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000503T
AirTAC X-KAPT6301000503T Gas-Liquid Intensifier Cylinder Specifications
- Model: X-KAPT6301000503T
- Type: Single-acting gas-liquid combined intensifier
- Boosting ratio: 1:10 (Standard)
- Max. gas input pressure: 0.7-0.8 MPa
- Hydraulic output pressure: Up to 70 MPa
- Stroke length: 50mm (adjustable)
- Rod end force: 3,000 kgf (at 0.7MPa input)
- Oil capacity: 0.3L (ISO VG32 recommended)
- Operating temperature: 5℃ to 60℃
- Port size: G1/4 (gas inlet), M14×1.5 (hydraulic port)
- Weight: 12.5 kg (dry, without oil)
- Dimensions: 300mm(L) × 100mm(Ø) × 380mm(H)
- Body material: Hard-anodized aluminum alloy
- Piston rod: Chrome-plated steel
- Seal type: High-pressure HNBR seals
- Protection class: IP54 (standard configuration)
A hybrid pressure amplifier combining pneumatic efficiency with hydraulic precision, featuring auto-return function via gas pressure release. The dual-stage intensification mechanism enables stable high-force output with low energy consumption. Includes built-in overload protection and oil level window.
- Sheet metal punching/forming operations
- Bearing and bushing press-fitting systems
- Hydraulic tool power sources
- Battery cell compression testing
- Plastic injection mold clamping assist
Installation note:
Requires vertical mounting orientation (±5° tolerance). Lubricate oil port with
anti-wear hydraulic fluid before initial use. Allow 15-minute run-in period at
50% pressure for seal conditioning.
Critical parameters:
Maintain oil temperature below 50℃ using heat sink fins or auxiliary cooling
when cycled >30 times/minute. Replace desiccant in air filter quarterly.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000503T |
