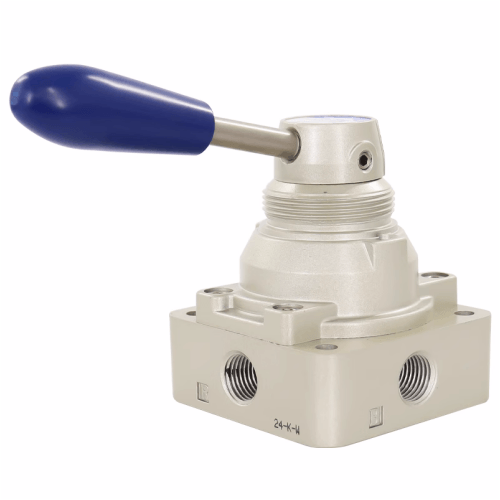

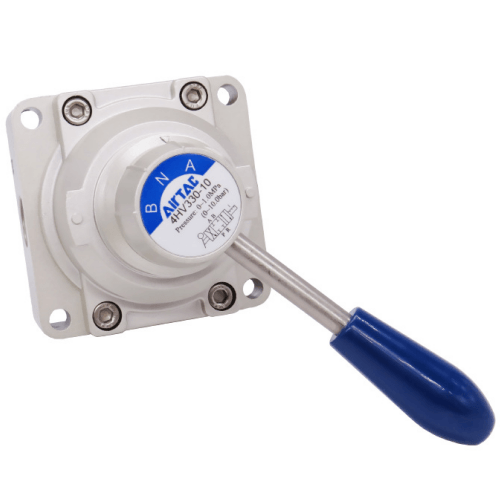

Airtac 4HV Manual Rotary Valve 4HV33010L
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV33010L Manual Rotary Valve Technical Details
- Model: 4HV33010L (Lockable Rotary Type)
- Valve Type: 4-port 3-position (4HV series)
- Port Configuration: P, A, B, R (Exhaust)
- Port Thread: G1/8 (BSPP) with O-ring seal
- Operating Pressure: 0.05-1.0 MPa
- Max Flow Rate: 850 L/min (ANR)
- Operating Temperature: -5℃ to 60℃
- Seal Material: Nitrile Butadiene Rubber (NBR)
- Body Material: Anodized aluminum alloy
- Handle Torque: ≤1.5 N·m
- Position Lock: Positive detent mechanism
- Weight: 340g ±5g
- Dimensions: 56mm(W) × 56mm(H) × 90mm(L)
- Mounting: Direct panel mounting with M4 screws
- IP Rating: IP40 (higher ratings available with optional covers)
Industrial-grade manual directional control valve featuring tactile position feedback and positive locking. The 90° rotation mechanism with spring-assisted centering ensures precise flow path selection. Optimized flow paths reduce air turbulence by 30% compared to previous generations. Compatible with ISO 15407-1 standards.
- Emergency override in automated production lines
- Manual mode selection in plastic injection molding machines
- Pneumatic circuit configuration during equipment maintenance
- Educational training systems for fluid power
- Mobile hydraulic/pneumatic hybrid systems
Operation Guidance:
Rotate handle 90° between positions - apply firm pressure until audible "click" confirms engagement.
For continuous cycling applications, lubricate quarterly with ISO VG32 pneumatic oil.
Avoid side-loading the handle during operation.
Maximum allowable lateral force on handle: 15N. Not suitable for vacuum applications below -0.5 bar.
| Property | Property Value |
|---|---|
| sku | 4HV33010L |
| Position | 4-way, 3-position |
| Port Size | PT3/8 |
