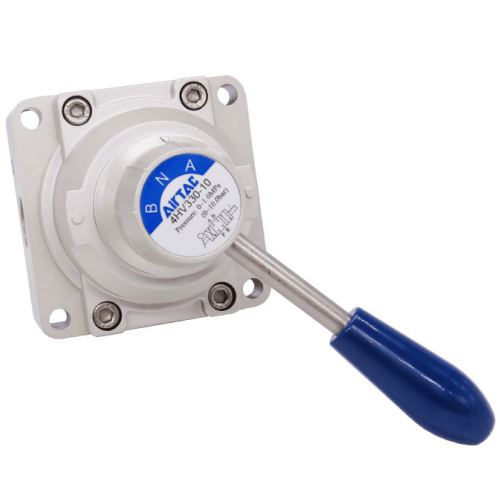

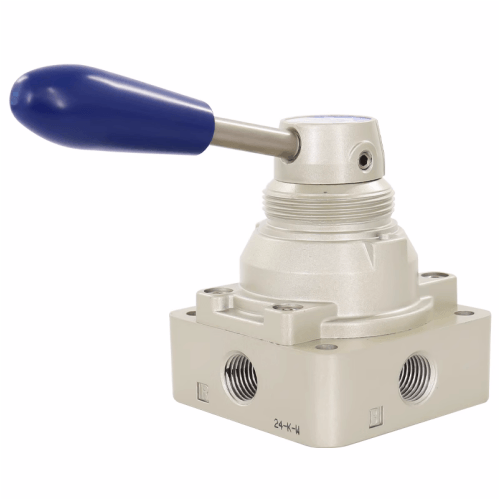

Airtac 4HV Manual Rotary Valve 4HV41020L
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV41020L Manual Rotary Valve Technical Details
- Model: 4HV41020L (L indicates lever handle type)
- Type: 4-port 3-position manual rotary valve
- Port configuration: 4HV (P: pressure, A/B: outlets, R/S: exhausts)
- Port size: PT1/4 (BSPP 1/4" thread)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 800 NL/min (ANR)
- Valve body material: Anodized aluminum alloy
- Seal material: High-grade NBR (nitrile rubber)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 215g ±5g (including handle)
- Dimensions: 68mm(L) × 34mm(W) × 53mm(H)
- Actuation torque: ≤0.5 N·m
- Mounting options: Panel mount with M5 screws
- Lever rotation angle: 90° position switching
Industrial-grade manual override valve with positive detent positions and wear-resistant chromium-plated spool. Features dual exhaust ports for rapid cylinder decompression and visual position indicator marks. Compatible with ISO 15407-1 standards for pneumatic valves.
- Emergency override in automated production lines
- Manual mode selection for pneumatic testing equipment
- Educational pneumatic system trainers
- Mobile machinery requiring fail-safe manual control
- Process line maintenance bypass systems
Installation guidelines:
Mount in accessible locations with full lever rotation clearance (minimum 120mm arc).
Apply thread sealant on ports and torque to 12-15 N·m. Lubricate spool quarterly with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | 4HV41020L |
| Position | 4-way 2-position |
| Port Size | BSPT 3/4 |
