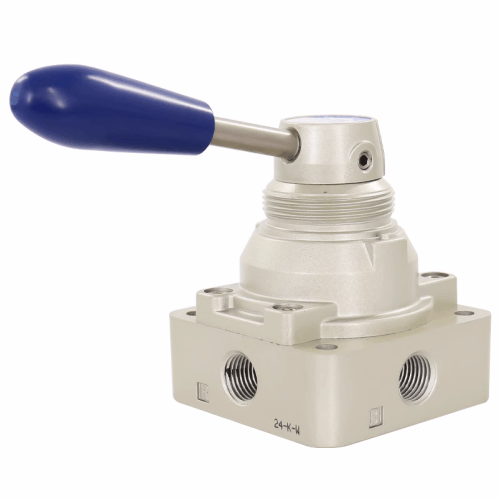

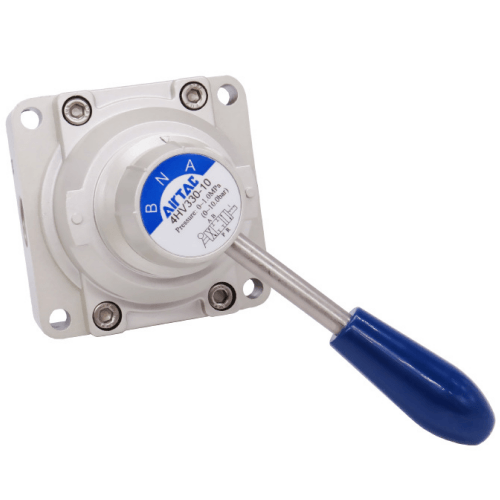

Airtac 4HV Manual Rotary Valve 4HV41020S
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV41020S Manual Rotary Valve Specifications
- Model: 4HV41020S
- Type: 4-port 3-position manual rotary valve
- Port configuration: P (pressure), A/B (actuator ports), R (exhaust)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Operating temperature: -20℃ to 80℃
- Seal material: NBR (Nitrile) standard / Optional Viton (FKM)
- Body material: Anodized aluminum alloy
- Handle torque: ≤1.5 N·m
- Weight: 215g ±5g
- Dimensions: 60mm(L) × 40mm(W) × 32mm(H)
- Mounting: Panel mount with M4 screw holes
- Position indication: Tactile detent with visual arrow marker
Robust manual override valve with precision-machined spool for reliable mid-position flow control. Features dust-resistant rotary mechanism with IP54 protection and ergonomic knurled handle. Requires manual operation force ≤3.5N, compatible with ISO 15407-1 standard pneumatic systems.
- Emergency override in automated production lines
- Manual mode switching for pneumatic test benches
- Position control in material handling equipment
- Educational pneumatic training systems
- Mobile hydraulic/pneumatic hybrid systems
Installation note:
Lubricate spindle monthly with ISO VG32 hydraulic oil. Ensure handle
rotation arc (90°±5°) isn't obstructed. Maximum 0.5mm panel thickness
for secure mounting.
| Property | Property Value |
|---|---|
| sku | 4HV41020S |
| Position | 4-way 2-position |
| Port Size | BSPT 3/4 |
