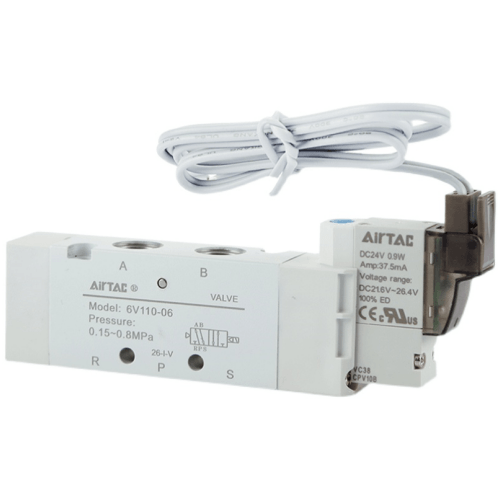

Airtac 6V Solenoid Valve 6V0520J04C200
2、Internal venting structure collects pilot air for centralized exhaust through R/S ports;
3、High-pressure die-cast aluminum alloy body features precision-machined inner bore for optimized flow path geometry and enhanced flow capacity;

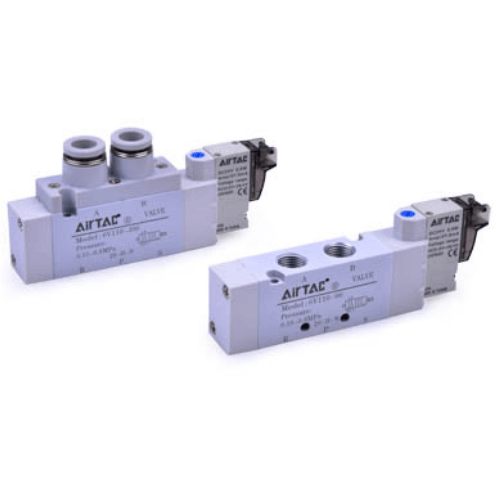

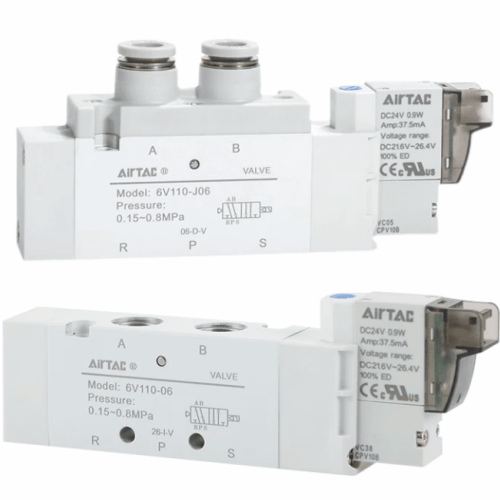

4、Available in threaded and quick-insertion port types, compatible with base-mounted valve manifolds for space-efficient installation.
Category: Solenoid Valves | Brand: AIRTC | Series: 6V
AirTAC 6V0520J04C200 Solenoid Valve Technical Details
- Full model designation: 6V-0520-J04-C200
- Valve type: 5-port 2-position (5/2-way) with double solenoid
- Port thread: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage specification: DC24V ±10% (J04 coil type)
- Flow capacity: CV 0.53 (at 6 bar, ΔP=1 bar)
- Weight: 348g ±5g (including coil and connector)
- Dimensions: 54.5mm(L) × 40mm(W) × 85.5mm(H)
- Seal material: NBR (Nitrile) standard, optional FKM/Viton
- Ambient temperature: -5℃ to 80℃ (no freezing)
- Response time: ≤30ms (at rated voltage)
- Power consumption: 2.5W (inrush 5.5W)
- Porting pattern: ISO 5599-1 standard
- Protection class: IP65 (coil protection)
This pilot-operated 5/2-way valve features a compact modular design with dual manual overrides and LED status indicators. The brass body with hard anodized aluminum sleeve ensures corrosion resistance in humid environments. Designed for precise directional control in pneumatic systems requiring bi-directional cylinder movement.
- Automated assembly line cylinder sequencing
- Textile machinery clamp positioning systems
- Plastic injection molding ejector mechanisms
- Semiconductor wafer handling robots
- Automotive tire mounting equipment
Installation guidelines:
Mount in vibration-free locations using M4 mounting screws (max torque 1.2N·m).
Maintain 15mm clearance below valve for manifold heat dissipation.
Use ISO 8573-1 class 3 compressed air (dew point ≥-25℃).
Maintenance cycle: Replace seals every 10 million cycles or 2 years (whichever comes first). Lubricate spool monthly in high-cycle applications (>5Hz).
| Property | Property Value |
|---|---|
| sku | 6V0520J04C200 |
| Port Size | PT 1/2 |
| Standard Voltage | AC 110V |
