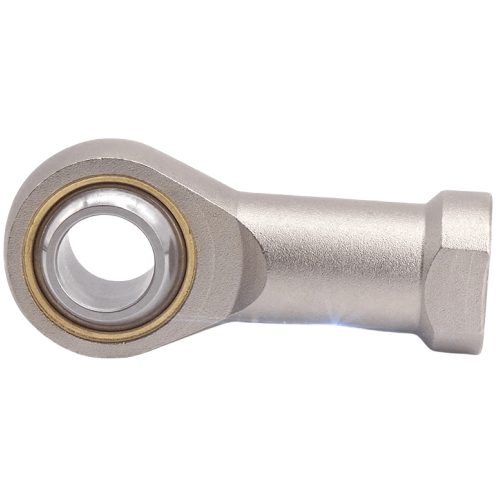

Airtac B52-F-M-U Rod End Complete Assembly B52-F-M5X080U
AirTAC B52-F-M-U Swivel Eye Joint Kit B52-F-M5X080U Technical Details
- Full model code: B52-F-M5X080U
- Type: Precision rod-end bearing with male thread
- Material composition:
- Body: Carbon steel SCr435 (case hardened & nickel-plated)
- Ball: Chrome steel SUJ2 with mirror polish (Ra≤0.2μm)
- Bush: Oil-impregnated sintered bronze
- Thread specifications: M5×0.8 male thread (ISO 262 metric fine)
- Rod length: 80mm ±0.3mm (from thread end to ball center)
- Ball inner diameter: φ6.0mm (+0/-0.012mm tolerance)
- Angular movement:
- ±12° lateral deflection
- 360° continuous rotation
- Load capacity:
- Dynamic radial load: 1,200N @ 100rpm
- Static axial load: 2,800N max
- Temperature range: -30℃ to +120℃ (with silicone grease)
- Installation torque: 1.5-2.0N·m (using 8mm wrench)
- Weight: 38g ±2g (including anti-corrosion oil coating)
- Dimensions: 80mm(L) × 16mm(W) × 16mm(H) (max projection)
Precision-aligned swivel joint featuring zero-backlash ball-and-socket design with PTFE-reinforced dust seal. The through-hole ball design enables bidirectional load transmission, while the optimized surface roughness (Ra0.4 on bearing surfaces) ensures smooth articulation under high cycling conditions. Includes pre-applied lithium-complex grease compatible with ISO VG32 hydraulic fluids.
- Pneumatic cylinder rod-end connections in pick-and-place robots
- Vibration isolation mounts for CNC tool changers
- Articulating joints in packaging machine folding arms
- Steering linkage pivots for AGV vehicles
- Adjustable sensor mounting brackets
Maintenance advisory:
Relubricate every 50,000 cycles using MIL-PRF-81322 grease.
Avoid axial hammering loads exceeding 500N. For M5 thread engagement,
ensure minimum 6mm thread penetration depth in mating part.
| Property | Property Value |
|---|---|
| sku | B52-F-M5X080U |
