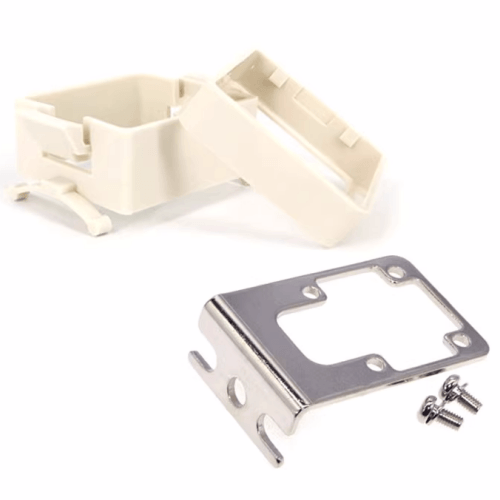

Airtac F-DPS Mounting Panel Bracket F-DPSEB
2. The tensile strength of connected cables must not exceed 60N; exceeding this limit may result in wiring failure.
3. The pneumatic source tube fittings have a torsional resistance of 7N·m. Over-tightening may compromise sealing integrity and system performance.
4. This product is not recommended for use with corrosive, flammable gases, or liquids.
5. Operate within the rated pressure range specified for the product. Over-pressurization will cause permanent damage.
6. Ensure the power supply is de-energized during electrical wiring. Incorrect wiring or short circuits may damage internal components.
7. Avoid environments with excessive humidity, moisture, or oil mist to prevent sensor degradation.
8. Do not bundle signal cables with power lines or high-voltage cables, as electromagnetic interference may trigger false actuation.
Category: Brackets | Brand: AirTAC | Series: F-DPS
AirTAC F-DPSEB Mounting Panel Bracket Specifications
- Model: F-DPSEB
- Material: Aluminum alloy 6063-T5
- Surface treatment: Black anodized (12-15μm thickness)
- Mounting hole spacing: 40mm (horizontal) × 18mm (vertical)
- Screw compatibility: M5 or M6 (metric thread)
- Panel thickness range: 1.5-4.0mm
- Max load capacity: 5kg (11 lbs) per bracket
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤10Hz/1.5mm amplitude
- Weight: 220g ±5g
- Dimensions: 150mm(L) × 50mm(W) × 25mm(H)
- Torque specification: 2.0-2.5N·m for M5 screws / 4.0-5.0N·m for M6 screws
Robust mounting solution designed for securing pneumatic components like F-DPS series valves to control panels or machinery surfaces. Features precision-machined slots for flexible positioning adjustment (±3mm) and anti-corrosion coating for harsh environments. Includes integrated cable management grooves (3mm width) for organized wiring.
- Modular pneumatic control cabinets
- Industrial robot end-effector installations
- CNC machine tool pneumatic circuit mounting
- Packaging line manifold systems
- Food processing equipment (washdown-resistant version available)
Installation note:
Use spring washers to prevent loosening in high-vibration environments.
For vertical mounting, install support brackets at ≤300mm intervals.
Apply thread-locking compound if exposed to thermal cycling above 60℃.
