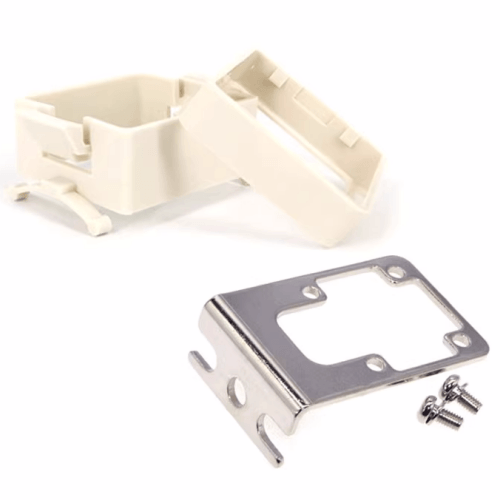

Airtac F-DPS Mounting Panel Bracket F-DPSLB
2. The tensile strength of connected cables must not exceed 60N; exceeding this limit may result in wiring failure.
3. The pneumatic source tube fittings have a torsional resistance of 7N·m. Over-tightening may compromise sealing integrity and system performance.
4. This product is not recommended for use with corrosive, flammable gases, or liquids.
5. Operate within the rated pressure range specified for the product. Over-pressurization will cause permanent damage.
6. Ensure the power supply is de-energized during electrical wiring. Incorrect wiring or short circuits may damage internal components.
7. Avoid environments with excessive humidity, moisture, or oil mist to prevent sensor degradation.
8. Do not bundle signal cables with power lines or high-voltage cables, as electromagnetic interference may trigger false actuation.
Category: Brackets | Brand: AirTAC | Series: F-DPS
AirTAC F-DPSLB Mounting Panel Bracket Technical Details
- Model: F-DPSLB Series
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized
- Mounting hole spacing: 40±0.2mm (horizontal) × 20±0.15mm (vertical)
- Compatible cylinder series: DPS, DPC, DPM
- Max load capacity: 15kg (static), 8kg (dynamic)
- Mounting screw specification: M5×0.8 (included)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Corrosion resistance: 500hr salt spray test passed
- Weight: 220g ±5g
- Dimensions: 98mm(L) × 42mm(W) × 28mm(H)
Heavy-duty mounting solution for pneumatic cylinder fixation, featuring precision-machined alignment grooves and reinforced load-bearing structure. The T-slot design enables 360° adjustable positioning with 15° incremental rotation capability. Includes anti-vibration rubber pads (Shore A60) for noise reduction.
- Multi-axis pneumatic actuator installations
- Modular production line configurations
- Robotic end-effector mounting systems
- Precision alignment in CNC machine tools
- Vibration-sensitive laboratory equipment
Installation protocol:
Apply 0.3-0.5N·m torque during screw fastening. Use M5 spring washers
(not included) for high-vibration environments. Lubricate sliding surfaces
with ISO VG32 hydraulic oil before adjustment.
| Property | Property Value |
|---|---|
| sku | F-DPSLB |
