Description
1、High sensitivity with low-pressure activation threshold;
2、Clear dial markings with selectable pressure units (PSI, bar, kPa, MPa);
3、Versatile mounting configurations and compatible accessories available;
4、Multiple port sizes (1/8", 1/4", 3/8") for flexible pipeline integration.
Category: Pressure Gauges , Brand: AIRTAC , Series: F-GF
Installation guidelines:
Mount vertically with connection port downward. Use thread seal tape (PTFE)
and tighten to 12-15 N·m torque. Avoid direct sunlight exposure and install
pulsation dampener if pressure fluctuations exceed 10% F.S.
2、Clear dial markings with selectable pressure units (PSI, bar, kPa, MPa);
3、Versatile mounting configurations and compatible accessories available;
4、Multiple port sizes (1/8", 1/4", 3/8") for flexible pipeline integration.
Category: Pressure Gauges , Brand: AIRTAC , Series: F-GF

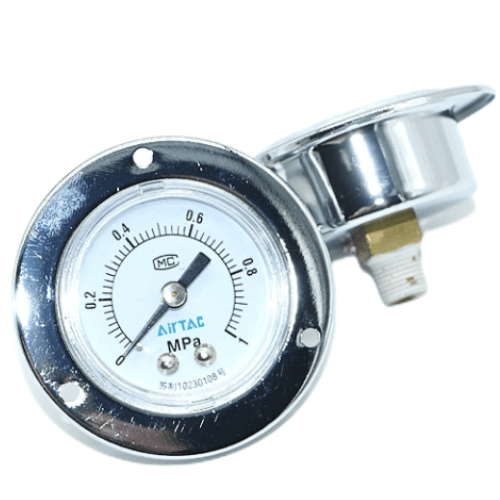

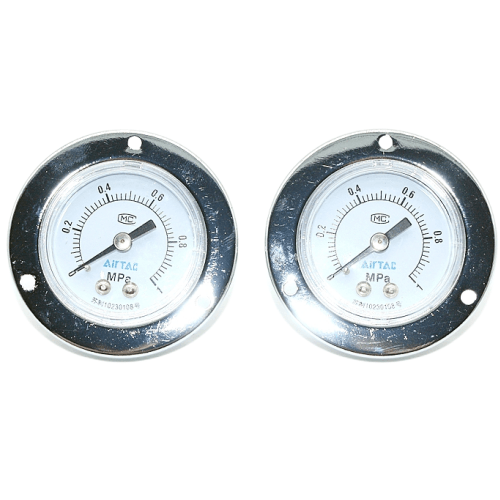

AirTAC F-GF4010P Pressure Gauge Technical Details
- Model: F-GF4010P (Stainless Steel Bourdon Tube Type)
- Pressure range: 0-1.0 MPa (0-145 PSI scale available)
- Accuracy class: ±1.6% F.S (EN 837-1 compliant)
- Connection type: G1/4" BSPP female thread (NPT1/4" optional)
- Dial diameter: 40mm (1.57") with white ABS case
- Window material: Polycarbonate (6mm thickness)
- Operating temperature: -20℃ to +60℃ (-4°F to 140°F)
- Proof pressure: 1.5x rated pressure (1.5MPa)
- Fluid compatibility: Air, non-corrosive gases, hydraulic oils (ISO VG32)
- Vibration resistance: ≤2.5m/s² (10-55Hz)
- Weight: 320g ±5g (without accessories)
- Dimensions: 62mm(W) × 62mm(D) × 85mm(H)
- Protection rating: IP54 (splash/dust resistant)
- Calibration: Factory-adjusted with ±2% verification certificate
Rugged industrial pressure gauge featuring a liquid-filled movement (optional glycerin fill for dampening) and 270° scale rotation. The stainless steel sensing element provides enhanced durability in high-pulse applications. Includes a zero-set function and blow-out safety back design.
Primary Applications:
- Hydraulic power unit pressure monitoring
- Pneumatic conveyor system diagnostics
- Injection molding machine pressure verification
- Compressed air station maintenance
- CNC machine lubrication system checks
Installation guidelines:
Mount vertically with connection port downward. Use thread seal tape (PTFE)
and tighten to 12-15 N·m torque. Avoid direct sunlight exposure and install
pulsation dampener if pressure fluctuations exceed 10% F.S.
Service life:
500,000 pressure cycles or 5 years (whichever comes first).
Perform zero-point calibration every 6 months using integrated adjustment screw.
| Property | Property Value |
|---|---|
| sku | F-GF4010P |
| Port Size | PT1/8 |
