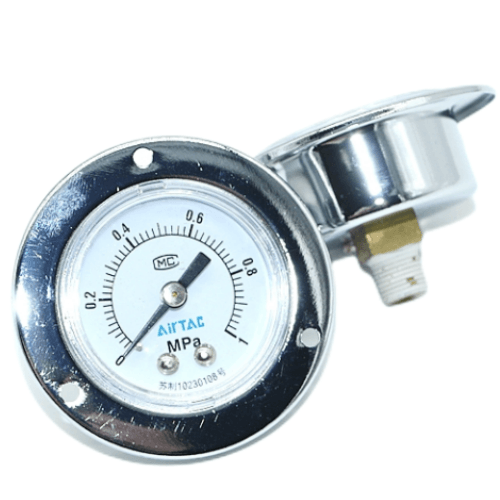

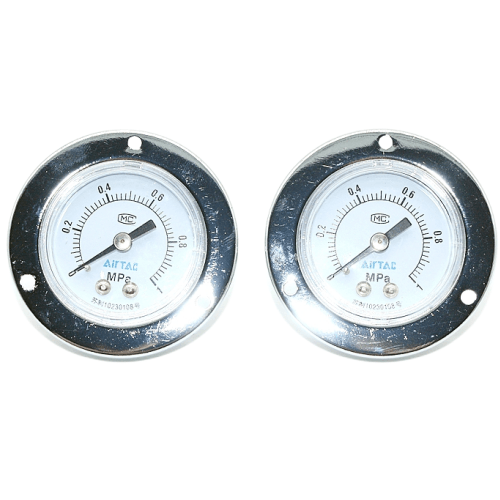

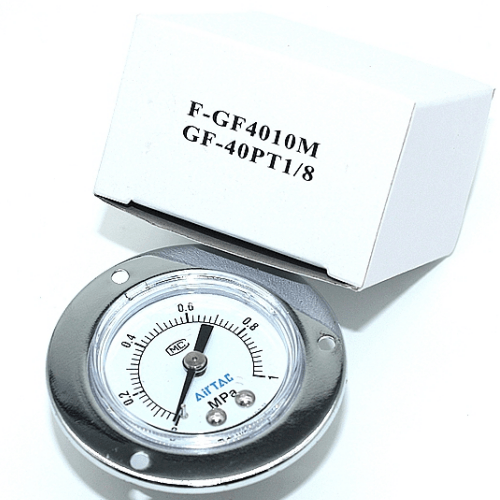

Airtac F-GF Pressure Gauge F-GF5004M
2、Clear dial markings with selectable pressure units (PSI, bar, kPa, MPa);
3、Versatile mounting configurations and compatible accessories available;
4、Multiple port sizes (1/8", 1/4", 3/8") for flexible pipeline integration.
Category: Pressure Gauges , Brand: AIRTAC , Series: F-GF
AirTAC F-GF5004M Pressure Gauge Technical Details
- Model: F-GF5004M
- Type: Bourdon tube pressure gauge with liquid-filled case
- Pressure range: 0-1.0 MPa (customizable up to 60 MPa)
- Accuracy class: ±1.6% F.S. (ASME B40.1 Grade B)
- Connection size: G1/4" BSPP female thread (NPT optional)
- Dial diameter: 50mm (2")
- Case material: 304 stainless steel with polycarbonate window
- Fluid temperature limit: -20℃ to 60℃ (medium dependent)
- Mounting: Bottom entry, radial orientation
- Filling liquid: Glycerin (95% purity, frost-resistant variant available)
- Weight: 280g ±5g (dry), 320g ±5g (filled)
- Dimensions: 65mm(D) × 50mm(H) × 28mm(W) (body only)
- Protection rating: IP54 (IP67 with optional O-ring)
- Vibration resistance: Up to 25Hz @ 1.5mm amplitude
Industrial-grade pressure measurement instrument featuring shock-absorbing liquid fill and anti-parallax dial design. The stainless steel case incorporates a pressure relief vent (1.5x max scale burst protection) and UV-resistant scale markings. Requires periodic calibration every 12 months under normal operating conditions.
- Hydraulic power unit pressure monitoring
- Plastic injection molding machine manifolds
- Compressed air systems (ISO 8573-1 Class 2 compliance)
- CNC machine tool lubrication circuits
- Water treatment plant pump stations
Installation guidelines:
Use 20-25 N·m torque for connection sealing. Avoid mounting in direct sunlight
or near heat sources. For pulsating media, install snubber accessory (F-GF-S01).
Zero-point calibration required after first 50 operating hours.
| Property | Property Value |
|---|---|
| sku | F-GF5004M |
| Port Size | PT1/4 |
