Airtac F-GS Pressure Gauge F-GS5010Z
$7.41
Regular price
$14.91
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-GS5010Z
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
F-GS Pressure Gauge
**Category:** Pressure Gauges
**Brand:** AirTAC
**Series:** F-GS
1. High sensitivity with ultra-low minimum detectable pressure threshold;
2. Precision-engineered dial with clear legibility and multi-unit display options (PSI, bar, MPa, etc.);
3. Flexible mounting configurations supported by modular accessories;
4. Multiple port sizes available (1/8", 1/4") for seamless system integration.
Engineered for industrial automation reliability, the F-GS series combines rapid response dynamics with customizable interface solutions to optimize pneumatic/hydraulic system monitoring.
Installation guidelines:
Mount vertically with connection at 6 o'clock position. Use thread sealant (not Teflon tape) for leak-proof installation.
Avoid lateral forces on stem - support heavy manifolds separately. Perform zero calibration after 500hrs continuous operation.
2. Precision-engineered dial with clear legibility and multi-unit display options (PSI, bar, MPa, etc.);
3. Flexible mounting configurations supported by modular accessories;
4. Multiple port sizes available (1/8", 1/4") for seamless system integration.
Engineered for industrial automation reliability, the F-GS series combines rapid response dynamics with customizable interface solutions to optimize pneumatic/hydraulic system monitoring.
AirTAC F-GS5010Z Pressure Gauge Technical Details
- Model: F-GS5010Z

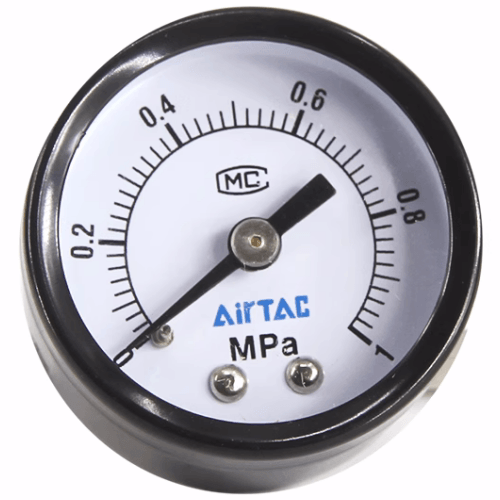

- Type: Bourdon tube pressure gauge with zinc alloy case
- Pressure range: 0-1.0 MPa (0-10 bar / 0-145 psi)
- Accuracy class: ±2.5% F.S. (EN 837-1 standard)
- Connection type: G1/4" BSPP female thread (radial mounting)
- Dial diameter: 50mm (2")
- Case material: Die-cast zinc alloy with epoxy coating
- Window: Polycarbonate lens, 3mm thickness
- Temperature limits:
- Ambient: -20℃ to +60℃
- Media: Max +80℃ (dry air/oil)
- Vibration resistance: ≤25 m/s² (5-25Hz)
- Protection rating: IP54 (front face)
- Weight: 180g ±5%
- Dimensions: 66mm(W) × 66mm(H) × 34mm(D)
Rugged industrial pressure gauge featuring shock-resistant construction and 270° scale rotation capability. The glycerin-filled version (F-GS5010Z-G) dampens needle vibration for pulsating systems. Calibration port allows field verification without disassembly.
Typical Applications:
- Pneumatic compressor output monitoring
- Hydraulic power unit pressure verification
- CNC machine tool lubrication systems
- Industrial dryer air circuit diagnostics
- Packaging machine clamp force regulation
Installation guidelines:
Mount vertically with connection at 6 o'clock position. Use thread sealant (not Teflon tape) for leak-proof installation.
Avoid lateral forces on stem - support heavy manifolds separately. Perform zero calibration after 500hrs continuous operation.
| Property | Property Value |
|---|---|
| sku | F-GS5010Z |
| Port Size | PT1/4 |
