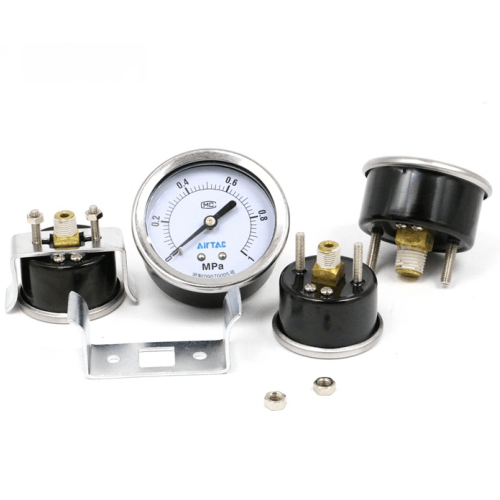

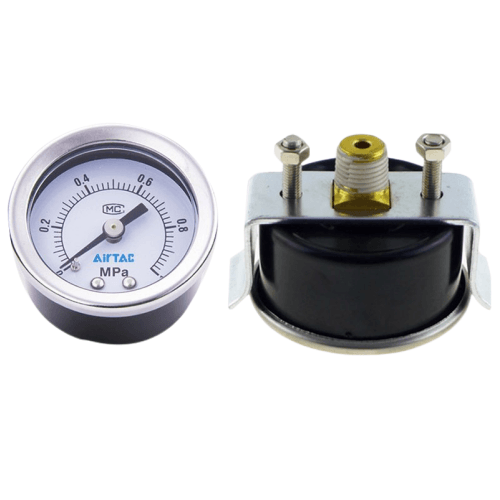

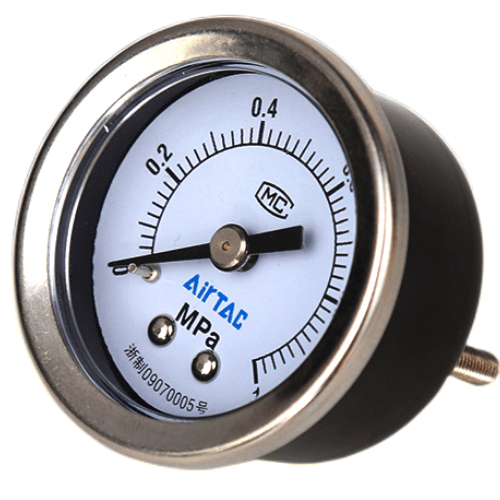

Airtac F-GU Pressure Gauge F-GU4004B
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU4004B Pressure Gauge Technical Details
- Model: F-GU4004B
- Type: Bourdon tube pressure gauge with glycerin filling
- Measurement range: 0-1.6 MPa (0-232 psi) / 0-16 bar
- Accuracy class: ±1.6% full scale (ASME B40.100 Grade B)
- Connection size: G1/4" male thread (NPT 1/4" optional)
- Case material: 304 stainless steel with polycarbonate window
- Movement material: Phosphor bronze
- Operating temperature: -20℃ to 60℃ (-4°F to 140°F)
- Pressure medium: Compatible with air, oil, water (non-corrosive media)
- Mounting: Panel mount with 45mm cutout diameter
- Protection: IP54 (splash and dust resistant)
- Vibration resistance: Up to 2.5g @ 10-55Hz
- Weight: 320g (11.3 oz)
- Dimensions: 60mm diameter × 62mm depth (2.36" × 2.44")
Industrial-grade pressure gauge featuring shock-absorbing glycerin fill (90% volume) for stable needle movement in high-vibration environments. The stainless steel case and tempered glass lens provide exceptional durability against mechanical impacts. Calibrated for both liquid and gas systems with ±1.5°C thermal compensation.
- Hydraulic power unit pressure monitoring
- Compressed air system diagnostics
- Water treatment plant filtration controls
- CNC machine lubrication systems
- Food processing pneumatic lines
Installation guidelines:
Mount vertically within 15° of upright position. Use thread sealant on connections.
Avoid direct sunlight exposure and maintain ambient temperature below 50℃.
Perform zero-point calibration every 6 months under static pressure conditions.
| Property | Property Value |
|---|---|
| sku | F-GU4004B |
| Port Size | PT1/8 |
