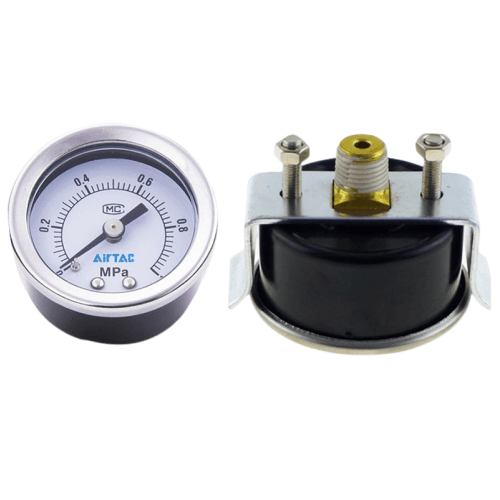

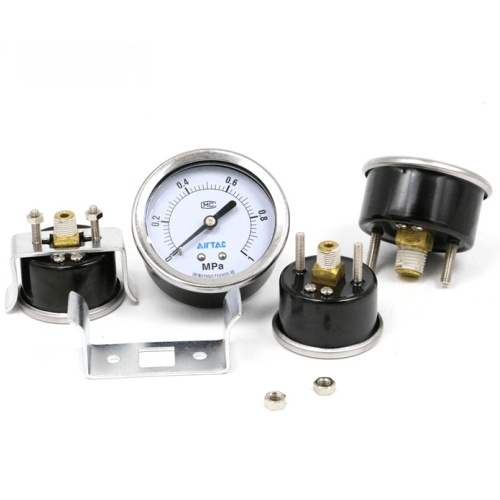

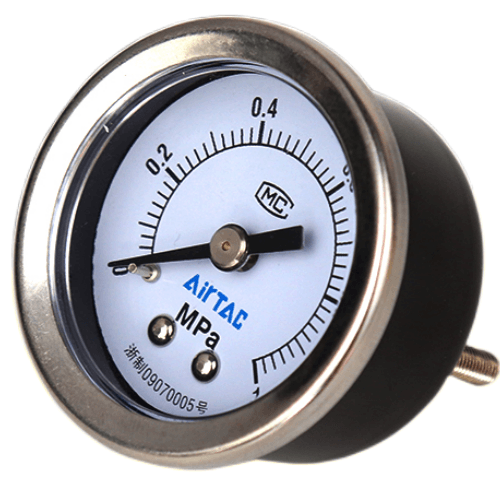

Airtac F-GU Pressure Gauge F-GU4004M
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU4004M Pressure Gauge Technical Details
- Model: F-GU4004M
- Type: Bourdon tube pressure gauge with glycerin damping
- Pressure range: 0-1.6 MPa (customizable up to 25 MPa)
- Accuracy class: ±1.6% F.S (ASME B40.100 Grade B)
- Dial size: 40mm diameter
- Connection type: G1/4" BSPP female thread (NPT optional)
- Case material: Stainless steel SS304 housing
- Window: Polycarbonate lens with anti-fog treatment
- Seals: Viton O-rings (standard), HNBR available
- Operating temp: -20°C to +60°C (with glycerin fill)
- Storage temp: -30°C to +70°C
- Weight: 300g ±5% (with mounting bracket)
- Dimensions: 60mm(D) × 80mm(H) × 28mm(protrusion depth)
- IP rating: IP65 (front face), IP54 (overall)
- Vibration resistance: ≤25Hz/2mm amplitude
Rugged industrial pressure gauge featuring shock-resistant construction and 100% oil-filled chamber for dampened needle movement. The brass-beryllium sensing element ensures stable readings in high-vibration environments. Calibrated for both gaseous and liquid media compatibility (non-corrosive fluids).
- Hydraulic power unit pressure monitoring
- Pneumatic compressor output verification
- CNC machine lubrication systems
- Plastic injection molding machines
- Water treatment plant pump stations
- HVAC refrigerant pressure checks
Installation guidelines:
Mount vertically with connection port downward. Use thread sealant on male fittings only.
Avoid side-load stress on connection port. Perform zero-point calibration every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | F-GU4004M |
| Port Size | PT1/8 |
