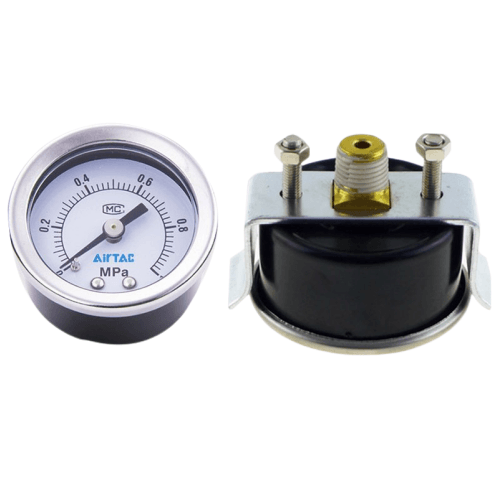

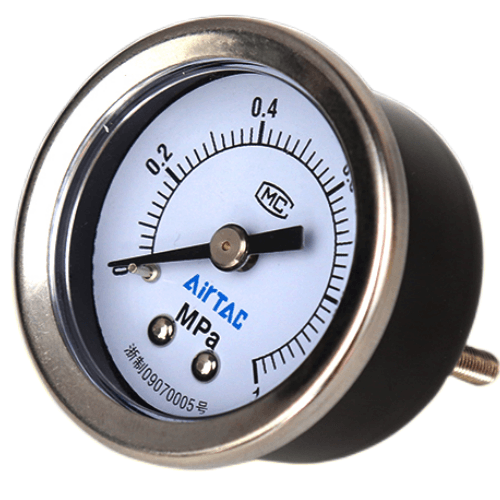

Airtac F-GU Pressure Gauge F-GU4010B
2、Clear dial markings with multiple pressure unit options;

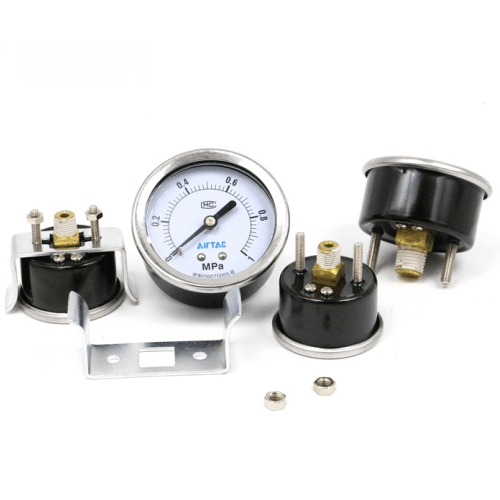

3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU4010B Pressure Gauge Technical Details
- Model: F-GU4010B
- Type: Bourdon tube pressure gauge with liquid-filled case
- Pressure range: 0-1.0 MPa (customizable to 0-1.6 MPa)
- Accuracy class: ±2.5% F.S. (Grade 2.5)
- Connection: R1/8" (G1/8" optional)
- Dial diameter: 63mm
- Case material: Stainless steel SS304
- Window: Polycarbonate with anti-fog coating
- Fill fluid: Glycerin (98% purity)
- Temperature limits: -20℃ to 60℃ (operating), -40℃ to 80℃ (storage)
- Vibration resistance: ≤25Hz with 1.6mm amplitude
- Protection class: IP65 (front face), IP54 (overall)
- Weight: 250g ±5% (with mounting bracket)
- Dimensions: 63mm(D) × 80mm(H) × 40mm(projection from mounting surface)
Industrial-grade pressure measurement instrument featuring shock-resistant construction and temperature-stable readings. The liquid-filled design (optional dry version available) minimizes pointer oscillation in high-vibration environments. Calibrated for both gaseous and liquid media compatibility.
- Pneumatic system pressure monitoring in CNC machines
- Hydraulic power pack pressure verification
- Compressed air line diagnostics in automotive workshops
- Process control systems for plastic injection molding
- Water treatment plant pump monitoring
Mounting advice:
Install with 1/2 wrap Teflon tape on threads. Avoid mounting in direct sunlight
or near heat sources. For vertical installations, maintain minimum 30° downward
tilt to prevent fluid accumulation in connection port.
| Property | Property Value |
|---|---|
| sku | F-GU4010B |
| Port Size | PT1/8 |
