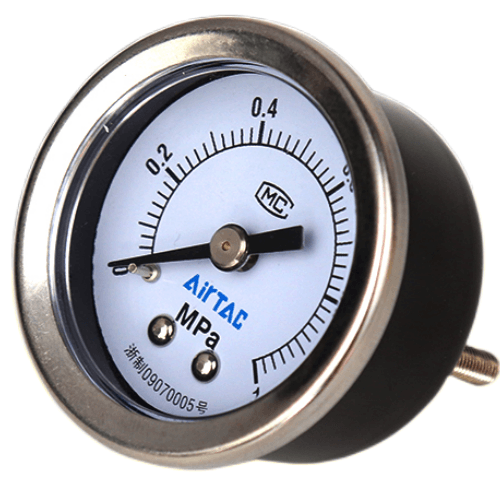

Airtac F-GU Pressure Gauge F-GU4010P
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU4010P Pressure Gauge Technical Details
- Model: F-GU4010P
- Type: Bourdon tube pressure gauge with radial connection
- Pressure range: 0-1.0 MPa (customizable to 0-1.6 MPa)
- Accuracy class: ±2.5% F.S (Grade B per EN 837-1)
- Connection size: R1/8 (G1/8 optional)
- Dial diameter: 60mm
- Case material: Black phenolic resin
- Window material: Polycarbonate (shatterproof)
- Movement material: Brass alloy
- Temperature limits:
- Ambient: -20℃ to 60℃
- Medium: Max 80℃ (dry air recommended)
- Protection rating: IP40

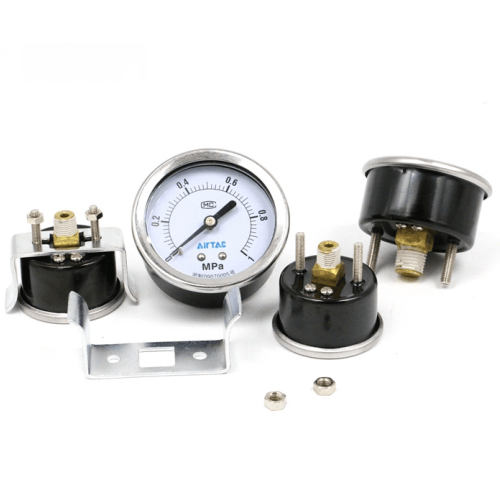

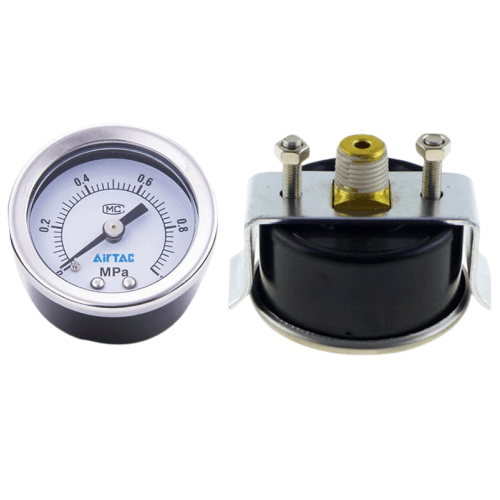

- Mounting: Direct thread installation
- Weight: 250g ±5%
- Dimensions:
- Body diameter: 60mm
- Overall height: 55mm
- Mounting depth: 35mm
- Connection projection: 10mm
Industrial-grade pressure gauge featuring a shock-resistant design with liquid-filled option (model variant F-GU4010P-F). The 270° scale rotation allows flexible viewing angles. Includes a zero-adjustment screw and pulsation-damping mechanism. Compatible with air, non-flammable gases, and non-corrosive fluids.
- Pneumatic system pressure monitoring in CNC machines
- Compressed air line diagnostics in automotive workshops
- HVAC system pressure verification
- Water treatment plant pump control systems
- Portable maintenance equipment kits
Installation tip:
Use 2-3 layers of PTFE tape on threads and tighten with maximum 15N·m torque.
For vibrating environments, install with a snubber or flexible coupling.
| Property | Property Value |
|---|---|
| sku | F-GU4010P |
| Port Size | PT1/8 |
