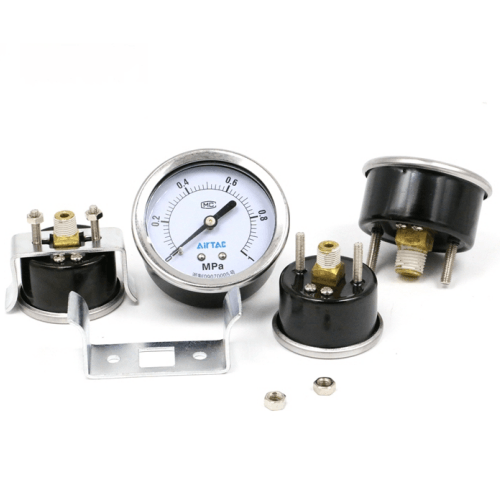

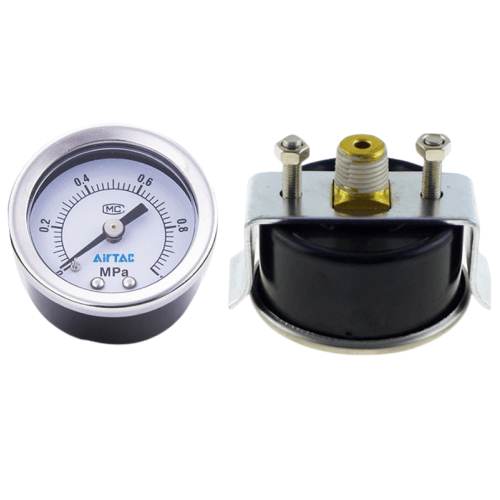

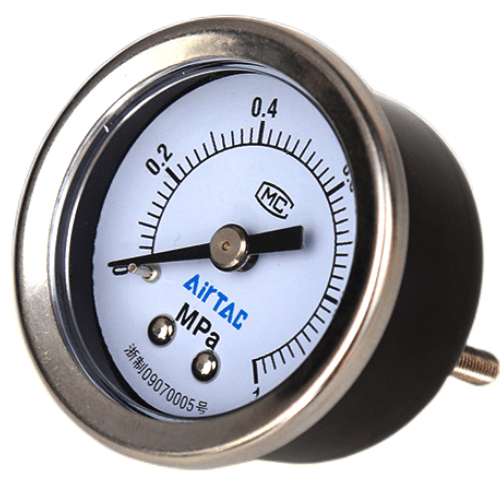

Airtac F-GU Pressure Gauge F-GU4010Z
$9.06
Regular price
$16.56
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-GU4010Z
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Highly responsive with low pressure detection threshold;
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
Installation Guidelines:
Mount vertically ±2° tolerance using 20-25N·m torque. Always install through
a pressure regulator upstream. For pulsating systems, use pulsation dampener
(AS-AD01 accessory recommended). Avoid direct sunlight exposure exceeding 2hrs/day.
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU4010Z Pressure Gauge Technical Details
- Model: F-GU4010Z (Stainless Steel Pointer Version)
- Measurement Range: 0-1.0 MPa (Standard), Customizable up to 10 MPa
- Accuracy Class: 2.5 Grade (EN 837-1 Certified)
- Connection Type: G1/4" BSPP Female Thread (NPT1/4" Optional)
- Case Material: Black Phenolic Resin with Chrome-Plated Brass Internals
- Dial Size: 40mm Diameter
- Temperature Limits:
- Ambient: -20℃ to +60℃
- Medium: -10℃ to +80℃ (Dry Air Only)
- Vibration Resistance: ≤6.7m/s² (ISO 10816-3 Compliant)
- Shock Protection: 100m/s² for 11ms (3-Axis)
- Weight: 180g ±5g (Without Accessories)
- Dimensions: 65mm(Ø) × 52mm(H) × 38mm(Back Mount Depth)
- Pressure Port Position: Radial (Bottom Entry Standard, Top Entry Optional)
- Protection Rating: IP54 (Front Face), IP40 (Housing)
- Calibration Interval: Recommended 12,000 Hours or 24 Months
Industrial-grade pressure gauge with anti-vibration liquid filling (optional glycerin/glycerol) for stable readings in high-pulsation environments. Features a 270° scale rotation capability and overpressure safety stop at 130% FS. The snubber design minimizes pressure spikes damage.
Primary Applications:
- Pneumatic conveyor system monitoring
- Injection molding machine pressure verification
- Compressed air station dashboard clusters
- Hydraulic power pack instrumentation (with media compatibility check)
- CNC machine tool lubrication systems
Installation Guidelines:
Mount vertically ±2° tolerance using 20-25N·m torque. Always install through
a pressure regulator upstream. For pulsating systems, use pulsation dampener
(AS-AD01 accessory recommended). Avoid direct sunlight exposure exceeding 2hrs/day.
Service Notice:
Replace silicone oil fill every 5 years or when discoloration occurs.
Zero-point calibration requires 24hr stabilization at 20±2℃ before adjustment.
| Property | Property Value |
|---|---|
| sku | F-GU4010Z |
| Port Size | PT1/8 |
