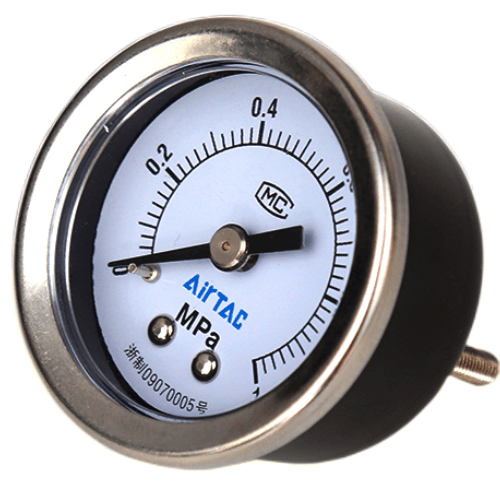

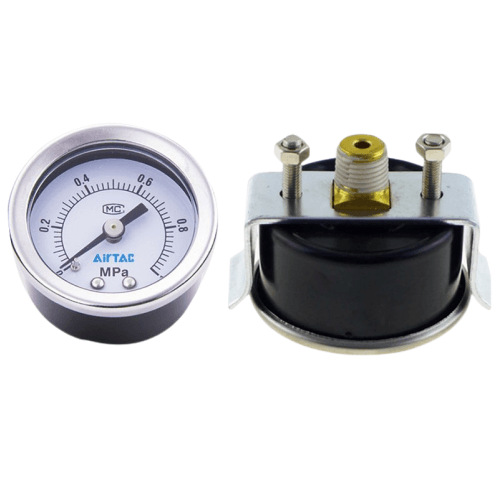

Airtac F-GU Pressure Gauge F-GU5004B
2、Clear dial markings with multiple pressure unit options;

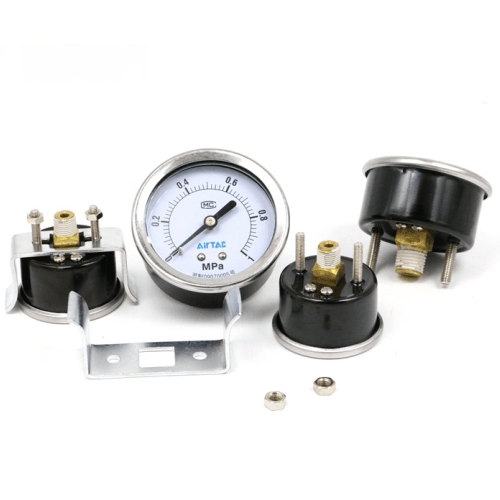

3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU5004B Pressure Gauge Technical Details
- Model: F-GU5004B
- Series: GU Standard Series
- Pressure Range: -0.1~1.5 MPa (Vacuum to Positive Pressure)
- Accuracy Class: ±2.5% F.S. (JIS B7505 Standard)
- Connection Size: G1/4 (BSPP Thread)
- Body Material: Stainless Steel SUS304
- Window Material: Acrylic (Impact-Resistant)
- Dial Diameter: 50mm (Standard Industrial Size)
- Weight: ~300g (Including Packaging)
- Dimensions: 80mm(Dia) × 60mm(H) × 25mm(Mounting Depth)
- Temperature Range: -20℃ to +70℃ (Operation), -40℃ to +80℃ (Storage)
- Protection Rating: IP65 (Dust-Tight & Water Jet Protected)
- Mounting Orientation: Radial (Bottom Connection)
- Calibration: Factory Pre-Calibrated with NIST Traceability
Industrial-grade pressure gauge featuring dual-scale bar/psi measurement (black scale for MPa, red for psi). The stainless steel Bourdon tube mechanism ensures durability in high-vibration environments. The 270° rotation-adjustable bezel allows optimal viewing angle alignment. Includes glycerin-filled option (specify F-GU5004B-G for dampened needle movement).
- Pneumatic system pressure monitoring in injection molding machines
- Hydraulic pressure verification for CNC equipment
- Compressed air line pressure display in automotive workshops
- Vacuum system monitoring in packaging machinery
- Water pressure indication in industrial filtration systems
Installation Guidelines:
Use PTFE sealing tape on threads. Mount vertically within ±5° to ensure accuracy.
Avoid direct sunlight exposure to prevent acrylic window yellowing.
Perform zero-point calibration every 2,000 operating hours.
Critical Note: Never exceed 1.6MPa (232psi) burst pressure.
For pulsating systems, specify optional snubber (F-GU-SNUB04).
Drain condensation monthly through the integrated vent plug.
| Property | Property Value |
|---|---|
| sku | F-GU5004B |
| Port Size | PT1/4 |
