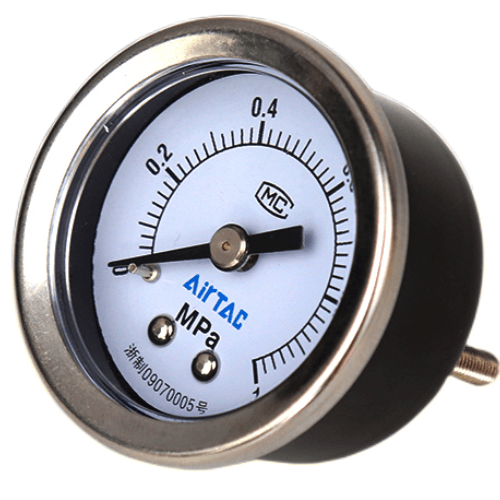

Airtac F-GU Pressure Gauge F-GU5004M
$11.39
Regular price
$18.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-GU5004M
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Highly responsive with low pressure detection threshold;
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
Installation guidelines:
Mount vertically with connection port downward. Use thread seal tape on male connections only.
Avoid side-loading forces during installation. For pulsating systems, install pulsation damper
within 300mm upstream. Recalibrate every 5,000 operating hours or 12 months.
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU5004M Pressure Gauge Technical Details
- Model: F-GU5004M
- Type: Bourdon tube pressure gauge with liquid-filled case
- Pressure range: 0-1.0 MPa (0-145 psi) / Custom ranges available
- Connection size: G1/4" female thread (NPT1/4" optional)
- Accuracy class: ±2.5% F.S. (ASME B40.100 Grade B)
- Case material: 304 stainless steel with polycarbonate window
- Movement material: Phosphor bronze bourdon tube
- Temperature limits:
- Ambient: -20℃ to 60℃
- Medium: -20℃ to 80℃ (water/oil)
- Protection: IP65 (NEMA 4X equivalent)

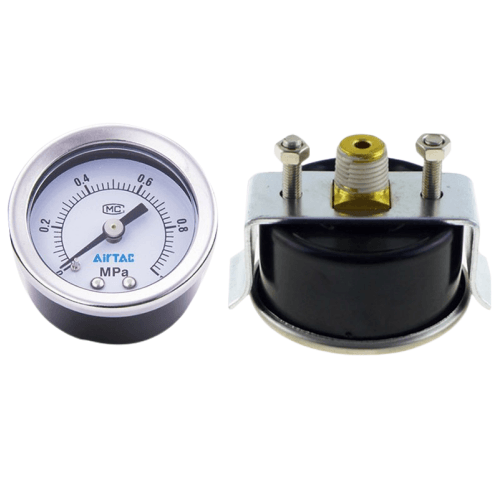

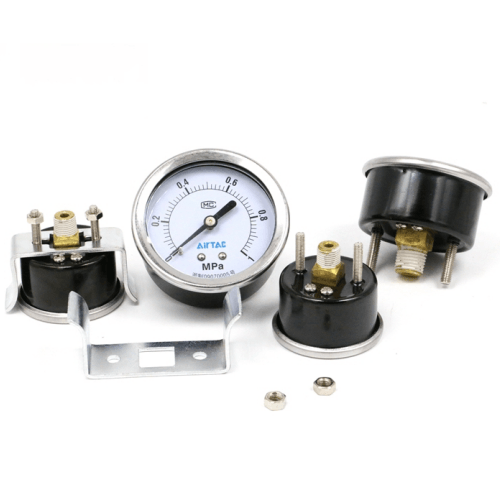

- Mounting: Direct thread installation or panel mount (with optional U-clamp)
- Weight: 480g ±5% (including packaging)
- Dimensions: 63mm diameter × 85mm height (body only)
- Dial size: 50mm with 270° scale rotation
- Fill fluid: Glycerin (98% purity, frost-resistant)
Industrial-grade pressure measurement instrument featuring shock-resistant construction and temperature-compensated movement. The liquid-filled design minimizes pointer vibration for stable readings in high-pulse environments. Calibrated for both gaseous and liquid media compatibility.
Common Applications:
- Hydraulic power unit pressure monitoring
- Pneumatic compressor system diagnostics
- CNC machine tool lubrication circuits
- Water treatment plant pump stations
- HVAC refrigerant pressure tracking
Installation guidelines:
Mount vertically with connection port downward. Use thread seal tape on male connections only.
Avoid side-loading forces during installation. For pulsating systems, install pulsation damper
within 300mm upstream. Recalibrate every 5,000 operating hours or 12 months.
| Property | Property Value |
|---|---|
| sku | F-GU5004M |
| Port Size | PT1/4 |
