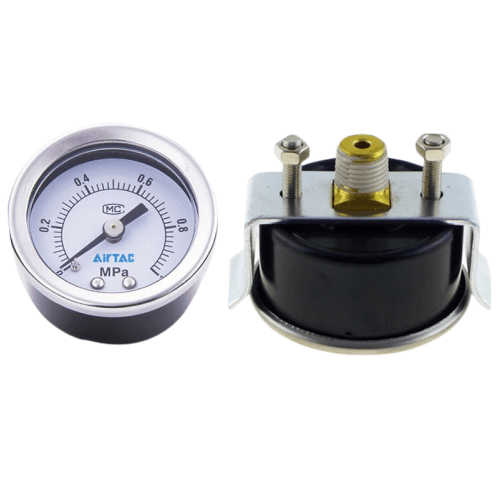

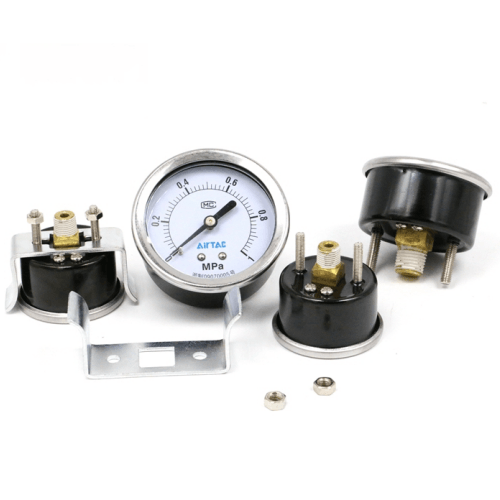

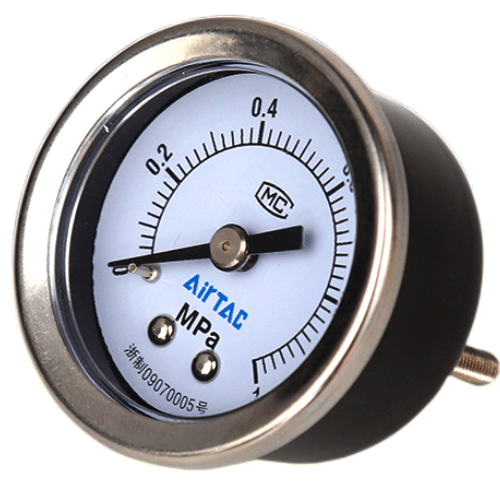

Airtac F-GU Pressure Gauge F-GU5010B
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU5010B Pressure Gauge Technical Details
- Model: F-GU5010B
- Type: Bourdon tube pressure gauge with dampening mechanism
- Pressure range: 0-1.6 MPa (0-232 PSI)
- Accuracy class: ±1.6% F.S. (ASME B40.1 Grade B)
- Connection: G1/4" female thread (NPT1/4" optional)
- Dial diameter: 50mm (2")
- Case material: Stainless steel SS304
- Window: Polycarbonate with anti-glare treatment
- Movement fluid: Glycerin-filled (95% fill ratio)
- Temperature limits: -20°C to 60°C (operating fluid)
- Protection rating: IP54 (dust/water resistant)
- Weight: 320g ±5g (including packaging)
- Dimensions: 60mm(W) × 60mm(H) × 58mm(D)
Industrial-grade pressure gauge featuring shock-resistant construction and liquid-filled movement for stable readings in high-vibration environments. The stainless steel case and reinforced sealing provide exceptional corrosion resistance, making it suitable for compressed air systems and hydraulic applications. Includes a zero-adjustment screw and 270° rotation capability for flexible installation.
- Pneumatic compressor system monitoring
- Hydraulic power unit pressure verification
- CNC machine tool lubrication systems
- Water treatment plant pump controls
- HVAC refrigerant pressure tracking
Installation guidelines:
Mount vertically with connection port downward to prevent fluid accumulation.
Use thread seal tape on male connections and avoid overtightening (max 15 N·m torque).
Perform monthly zero-point calibration under atmospheric pressure.
| Property | Property Value |
|---|---|
| sku | F-GU5010B |
| Port Size | PT1/4 |
