Airtac F-GU Pressure Gauge F-GU5010M
2、Clear dial markings with multiple pressure unit options;

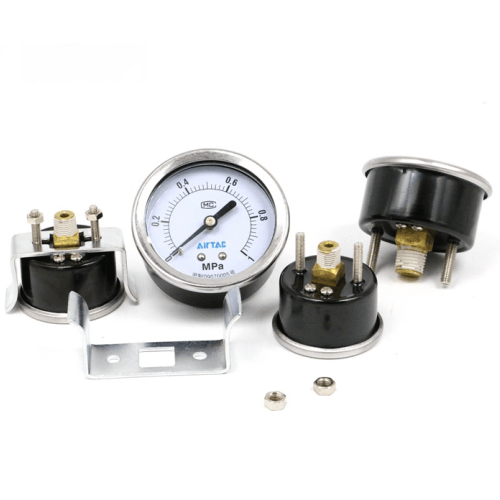

3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU

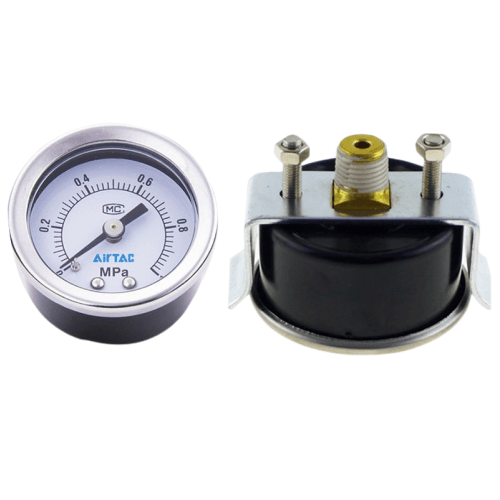

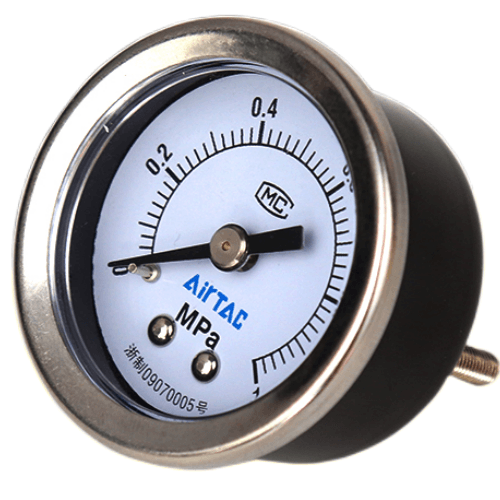

AirTAC F-GU5010M Pressure Gauge Technical Details
- Model: F-GU5010M
- Type: Bourdon tube pressure gauge with mechanical movement
- Measurement range: 0-10 bar (0-1.0 MPa) standard (custom ranges available)
- Accuracy class: ±1.6% full scale (ASME B40.100 Grade B)
- Connection size: G1/4" female thread (NPT1/4" optional)
- Dial diameter: 63mm
- Case material: Stainless steel SS304 with baked enamel finish
- Window material: Shatter-resistant polycarbonate
- Movement fluid: Glycerin-filled (95% fill ratio) for vibration resistance
- Operating temperature: -20℃ to +60℃ (dry media)
- Proof pressure: 1.5x full scale
- Burst pressure: 3x full scale minimum
- Weight: 310g ±5g (including packaging)
- Dimensions: 63mm diameter × 80mm height (excluding connection)
- Mounting length: 50mm from back flange to tip
- IP rating: IP54 (front face)
Industrial-grade pressure gauge featuring a liquid-filled movement for stable readings in high-vibration environments. The stainless steel case and reinforced sealing (O-ring + thread sealant) ensure reliable performance in humid conditions. Calibration certification available upon request.
- Air compressor output monitoring systems
- Pneumatic conveyor line pressure verification
- Hydraulic power unit safety oversight
- CNC machine tool lubrication circuits
- Process gas regulation in semiconductor manufacturing
Mounting guidance:
Install with 2x backup wrenches to prevent case distortion - tighten connection to 12-15Nm torque.
Avoid direct sunlight exposure to prevent fluid discoloration. Perform zero-point calibration
every 2,000 operating hours using the integrated adjustment screw.
| Property | Property Value |
|---|---|
| sku | F-GU5010M |
| Port Size | PT1/4 |
