Airtac F-GU Pressure Gauge F-GU5010Z
2、Clear dial markings with multiple pressure unit options;

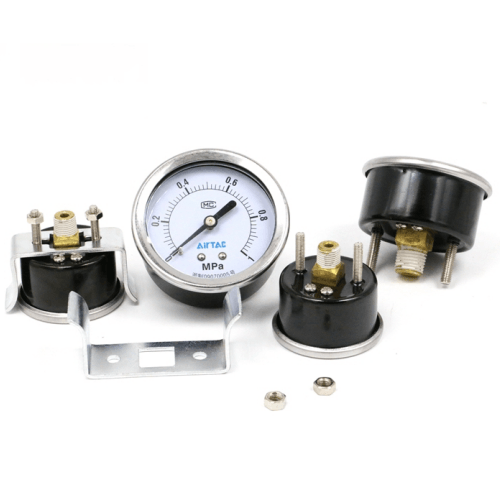

3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU

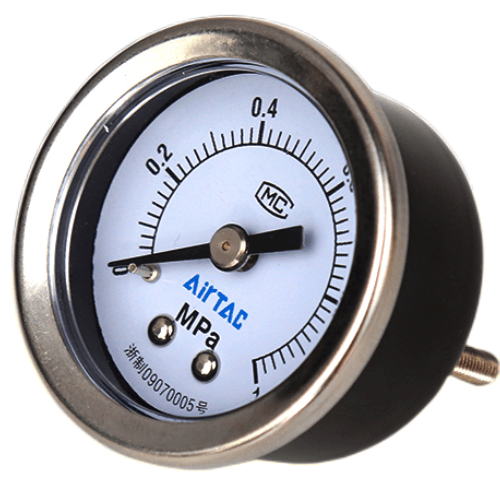

AirTAC F-GU5010Z Pressure Gauge Technical Specifications
- Model: F-GU5010Z
- Type: Bourdon tube pressure gauge with dampening mechanism
- Measurement range: 0-1.0 MPa (customizable up to 10 MPa)
- Accuracy class: ±2.5% F.S. (ASME B40.100 Grade B)
- Connection size: G1/4" BSPP female thread
- Case material: 304 stainless steel
- Window: 5mm tempered glass with anti-fog coating
- Temperature resistance: -20℃ to +80℃ (medium), -10℃ to +60℃ (ambient)
- Vibration resistance: Up to 25Hz with 1.5mm amplitude
- IP rating: IP54 (splash and dust resistant)
- Pressure unit: MPa/psi dual scale (switchable versions available)

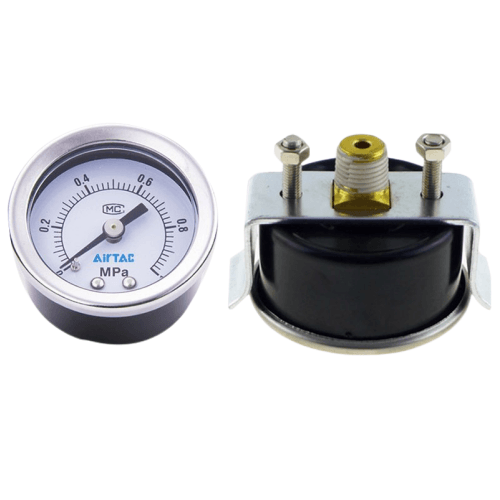

- Mounting: Direct installation or panel mount via 55mm DIN bracket
- Weight: 320g ±5% (without accessories)
- Dimensions: 60mm diameter × 45mm depth (body), 100mm total height including stem
Industrial-grade pressure measurement instrument featuring shock-absorbing silicone oil filling for pulsating environments. The chrome-plated brass movement mechanism ensures stable readings under rapid pressure fluctuations. Includes a 240° rotation-adjustable dial for flexible installation angles.
- Compressed air systems in CNC machinery
- Hydraulic power unit monitoring
- Plastic injection molding press pressure verification
- Pneumatic conveyor line pressure regulation
- HVAC refrigerant pressure supervision
Installation guidelines:
Always install with thread seal tape (PTFE) and torque to 15-20 N·m.
Maintain vertical orientation (±15° tolerance) for optimal accuracy.
Bleed air slowly during first pressurization to prevent mechanism shock.
| Property | Property Value |
|---|---|
| sku | F-GU5010Z |
| Port Size | PT1/4 |
