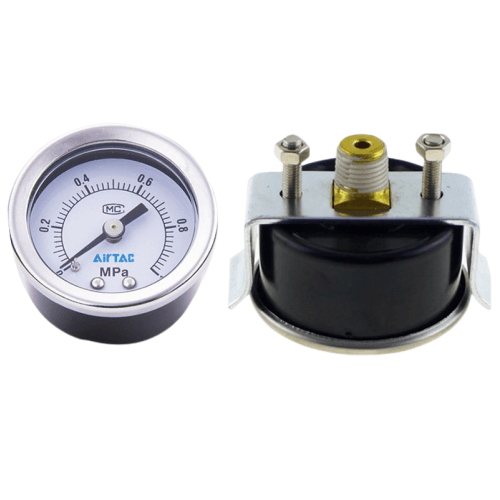

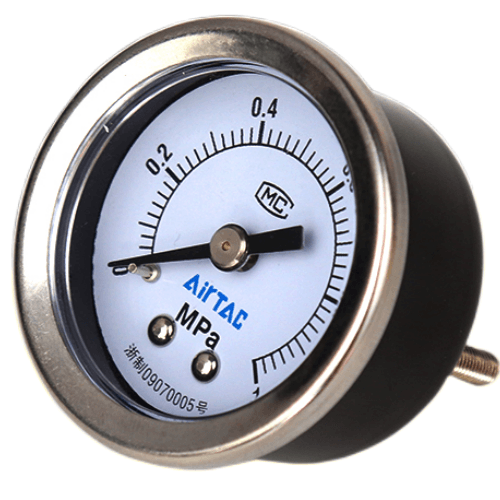

Airtac F-GU Pressure Gauge F-GU6004B
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU6004B Pressure Gauge Technical Details
- Model: F-GU6004B
- Type: Bourdon tube pressure gauge (liquid-filled)
- Pressure range: 0-1.0 MPa (customizable up to 60 MPa)
- Connection type: G1/4" BSPP female thread (NPT optional)
- Accuracy class: ±2.5% F.S (ASME B40.1 Grade B)
- Dial diameter: 63mm (2.5")
- Case material: Stainless steel SS304
- Window material: Polycarbonate (shatter-resistant)
- Fluid compatibility: Air, oil, water (non-corrosive media)
- Operating temperature: -20℃ to 60℃
- Protection rating: IP54 (splash & dust resistant)
- Vibration resistance: ≤2.5mm amplitude at 10-55Hz
- Weight: 450g ±5% (with mounting bracket)
- Dimensions: 150mm(H) × 63mm(Ø) × 30mm(protrusion depth)

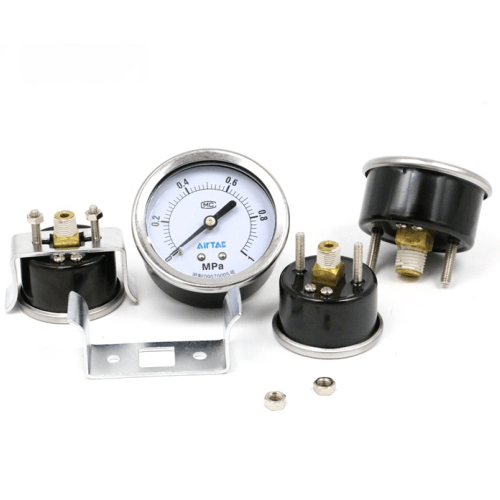

Industrial-grade pressure measurement instrument with glycerin-filled dampening for stable needle movement in high-vibration environments. Features a dual-scale bar/psi display (default 0-1.0MPa / 0-145psi) with 270° scale rotation capability. Includes adjustable mounting bracket for 360° orientation adjustment.
- Pneumatic system pressure monitoring in CNC machines
- Hydraulic power unit pressure verification
- Compressed air line diagnostics
- Industrial boiler auxiliary pressure indication
- Water treatment plant pump systems
Installation guidelines:
Mount vertically with connection port downward. Use PTFE tape on threads
and tighten with 14-18N·m torque. Avoid direct sunlight exposure.
Perform zero calibration every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | F-GU6004B |
| Port Size | PT1/4 |
