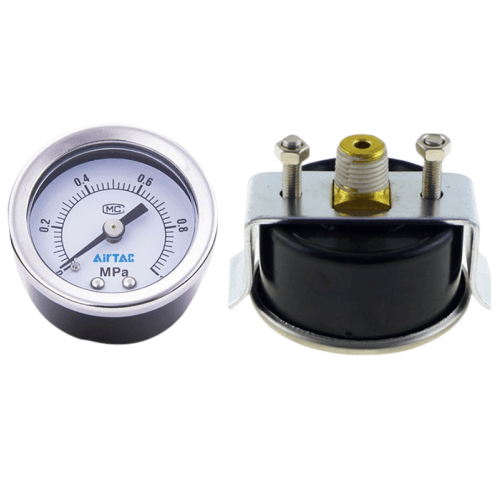

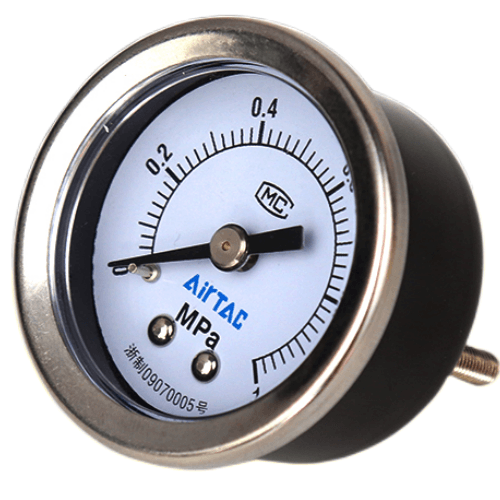

Airtac F-GU Pressure Gauge F-GU6010B
2、Clear dial markings with multiple pressure unit options;

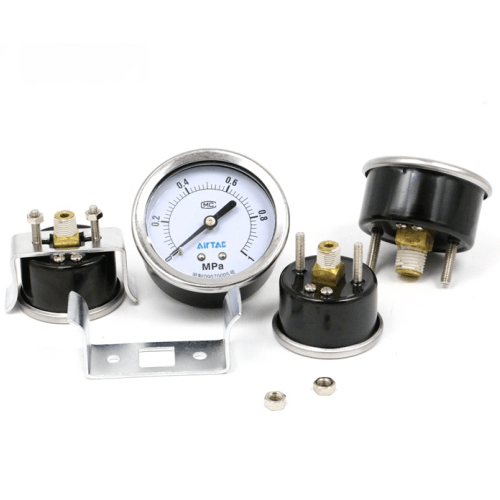

3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU6010B Pressure Gauge Technical Details
- Model: F-GU6010B
- Measurement range: 0~1.0 MPa (standard), customizable up to 10 MPa
- Accuracy class: ±2.5% F.S. (Full Scale)
- Dial diameter: 60mm (2.36")
- Connection type: G1/4" BSPP female thread (Rc1/4 optional)
- Case material: Black phenolic resin with polycarbonate window
- Movement type: Bourdon tube mechanism
- Temperature compensation: 20℃±5℃ operating ambient
- Operating temperature: -20℃ to +60℃
- Pressure medium: Compatible with air, non-corrosive gases, and hydraulic fluids (≤ISO VG32)
- Vibration resistance: ≤2.5m/s² (10-55Hz)
- Shock resistance: 100m/s² (3 times each axis)
- Protection rating: IP54 (front face), IP40 (housing)
- Weight: 230g ±5% (without accessories)
- Dimensions: 60mm diameter × 52mm depth (body), 80mm total length with connector
Industrial-grade pressure gauge featuring shock-absorbing silicone oil filling (optional) for pulsating environments. The chrome-plated brass movement ensures corrosion resistance in humid conditions. Calibration adjustment screw accessible through rear port. Includes 270° scale rotation capability for flexible installation.
- Air compressor pressure monitoring systems
- Pneumatic conveyor line pressure verification
- Hydraulic power unit feedback control
- CNC machine tool lubrication circuits
- Plastic injection molding machine pressure validation
Mounting advice:
Install with 1-2 thread turns exposed before tightening. Use 50-60N·m torque
with sealing tape. Avoid direct sunlight exposure exceeding 50℃. Perform
quarterly zero-point calibration using side-adjustment screw.
Pressure spikes above 120% FS may
cause permanent damage. Always install pulsation damper when monitoring
reciprocating compressor outputs.
| Property | Property Value |
|---|---|
| sku | F-GU6010B |
| Port Size | PT1/4 |
