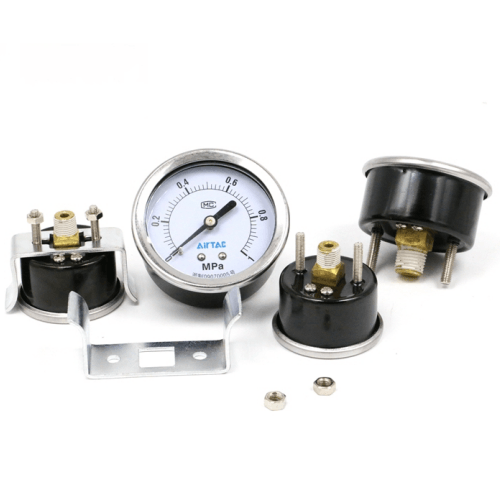

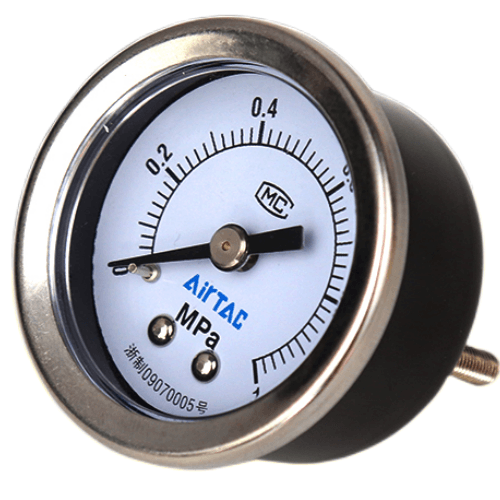

Airtac F-GU Pressure Gauge F-GU6010M
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU6010M Pressure Gauge Technical Details
- Model: F-GU6010M
- Type: Bourdon tube pressure gauge (mechanical)
- Pressure range: 0-1.0 MPa (0-10 bar / 0-145 psi)
- Accuracy class: ±2.5% F.S. (ASME B40.100 Grade B)
- Port size: G1/4 female thread (ISO 228-1)
- Dial diameter: 60mm (2.36")
- Case material: Stainless steel SS304
- Window: Polycarbonate (5mm thickness)
- Movement lubrication: Glycerin-filled (85% volume)
- Operating temperature: -20℃ to 60℃
- Vibration resistance: ≤2.5mm amplitude at 10-55Hz
- Weight: 280g ±5% (with packaging)
- Dimensions: 76mm(W) × 76mm(H) × 34mm(D)

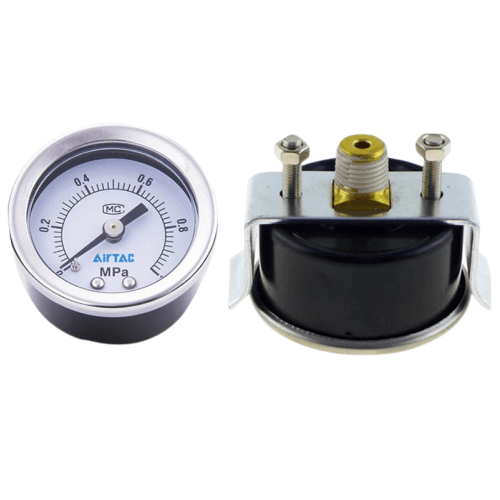

- Mounting: Panel mount (panel thickness ≤3mm)
- Pressure medium: Air/N2/Oil (non-corrosive gases/liquids)
- IP rating: IP54 (front face)
Industrial-grade pressure gauge featuring shock-resistant construction and liquid-filled movement for stable needle indication in high-vibration environments. The glycerin filling dampens pulsation effects and lubricates internal components. Calibrated for both gas and liquid media with dual-scale bar/psi markings.
- Air compressor output monitoring
- Pneumatic conveyor system pressure verification
- Hydraulic power pack instrumentation panels
- CNC machine tool lubrication systems
- Industrial boiler auxiliary pressure indication
Maintenance protocol:
Avoid sudden pressure spikes exceeding 120% FS. For vertical mounting,
ensure the vent hole (marked "↑") faces upward. Replace glycerin every
3-5 years under continuous operation.
| Property | Property Value |
|---|---|
| sku | F-GU6010M |
| Port Size | PT1/4 |
