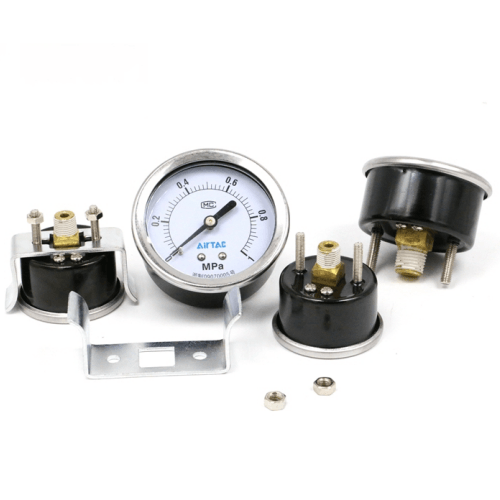

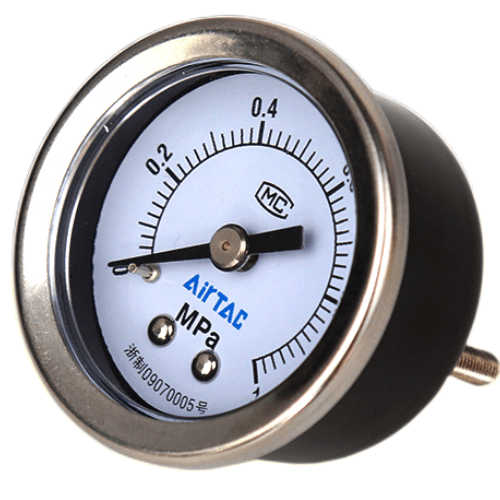

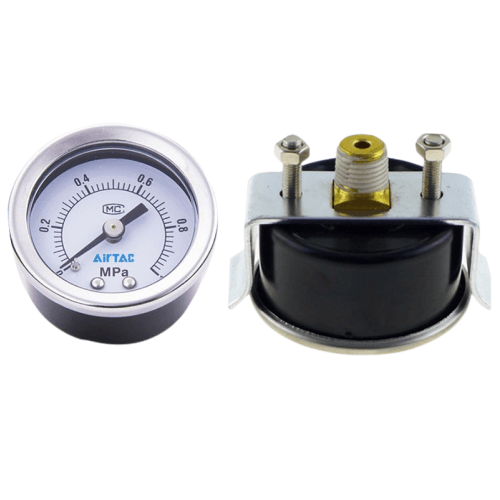

Airtac F-GU Pressure Gauge F-GU6010P
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU6010P Pressure Gauge Technical Details
- Model: F-GU6010P
- Type: Bourdon tube pressure gauge with dampening mechanism
- Pressure range: 0-1.0 MPa (0-10 bar / 0-145 psi)
- Accuracy class: ±2.5% F.S. (ASME B40.100 Grade B)
- Connection thread: G1/4" BSPP female (alternative R1/4 available)
- Dial diameter: 60mm (2.36")
- Case material: SUS304 stainless steel
- Window: Polycarbonate with anti-glare treatment
- Temperature limits:
- Ambient: -20℃ to +60℃
- Medium: Max +80℃ for continuous use
- Weight: 280g ±5g (without accessories)
- Dimensions: 72mm(W) × 72mm(H) × 46mm(D)
- Protection rating: IP54 (front face)/IP42 (rear)
- Vibration resistance: ≤25Hz with 1.5mm amplitude
- Mounting orientation: Vertical ±5° tolerance
Rugged industrial pressure gauge featuring liquid-filled construction (glycerin-filled variant available as F-GU6010P/GL) for stable needle movement in high-vibration environments. The chrome-plated brass movement mechanism ensures long-term stability with ≤0.1% annual drift rate. Includes a blow-out safety back design meeting EN 837-1 standards.
- Pneumatic system pressure monitoring in CNC machines
- Hydraulic power pack pressure indication
- Compressed air line maintenance in automotive workshops
- Process control in plastic injection molding equipment
- Energy monitoring systems for industrial compressors
Installation guidelines:
Use 20-25 N·m torque for thread sealing. Avoid mounting near heat sources (>80℃)
or in direct sunlight. For pulsating media, specify optional snubber (F-GU-SN01).
Calibrate quarterly under continuous vibration conditions.
| Property | Property Value |
|---|---|
| sku | F-GU6010P |
| Port Size | PT1/4 |
