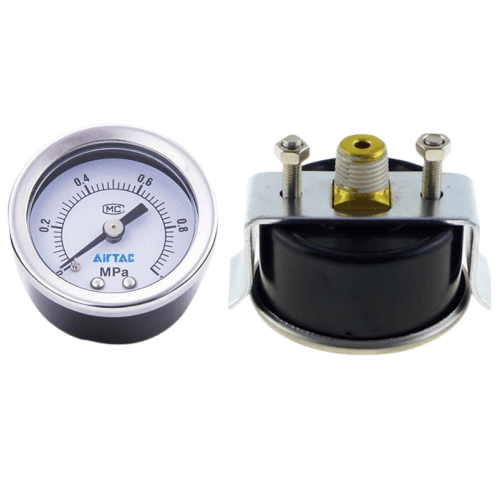

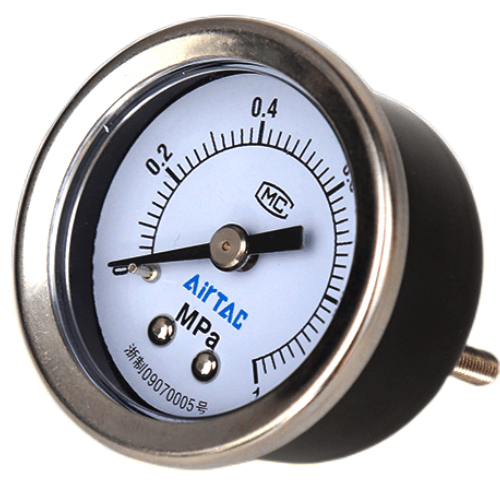

Airtac F-GU Pressure Gauge F-GU6010Z
2、Clear dial markings with multiple pressure unit options;
3、Adjustable mounting orientations and diverse accessory configurations available;
4、Multiple port size options for flexible system integration.
Category: Pressure Gauges, Brand: AirTAC, Series: F-GU
AirTAC F-GU6010Z Pressure Gauge Technical Details
- Model: F-GU6010Z
- Type: Bourdon tube mechanical gauge with zinc alloy case
- Pressure range: 0-1.0 MPa (0-10 bar / 0-145 psi)
- Connection: G1/4" female thread (BSPP standard)
- Accuracy: ±2.5% of full scale (FS)
- Dial diameter: 60mm
- Window material: Acrylic lens with anti-fog treatment
- Case material: Corrosion-resistant zinc alloy (RAL 7011 grey)
- Temperature resistance: -20℃ to 60℃ (medium), -10℃ to 60℃ (ambient)
- IP rating: IP40 (front face protection)

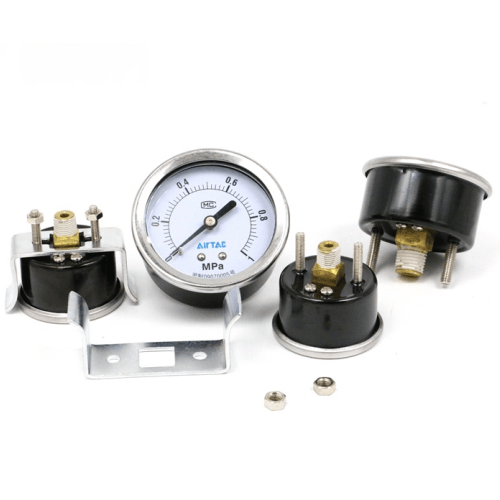

- Mounting: Radial/Tangential (standard) or axial/back-mount (optional)
- Weight: 280g ±5g
- Dimensions: 78mm (H) × 60mm (Ø) × 34mm (D) [body only]
- Accessories: Rubber sealing washer included (NBR material)
Industrial-grade pressure monitor featuring shock-resistant construction and 270° dial rotation capability. The dual-scale display (MPa & psi) with luminous pointer enables low-light readability. Sealed glycerin-filled version (F-GU6010Z-S) available for vibration-intensive environments.
- Air compressor output monitoring
- Pneumatic conveyor system pressure regulation
- HVAC refrigerant pressure tracking
- Hydraulic test bench installations
- CNC machine tool lubrication systems
Installation guidelines:
Use thread seal tape on male connections. Mount with vibration-damping sleeve (AS-1022) when installed near pulsation sources.
Avoid lateral forces on connection port. Calibrate quarterly under continuous vibration conditions.
- Protective grid cover (PG-60)
- Flame-retardant mounting bracket (FB-40X)
- Pressure snubber (PS-04M) for pulsation damping
| Property | Property Value |
|---|---|
| sku | F-GU6010Z |
| Port Size | PT1/4 |
