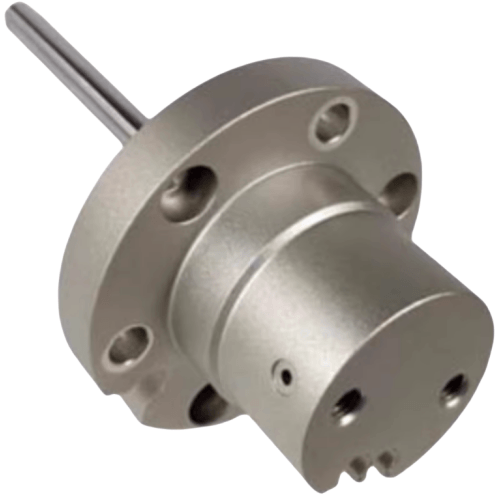

AirTAC F-HFCQ-E Series Cylinder Rod Package F-HFCQ32E Technical Details
- Model: F-HFCQ32E (Complete Rod Package)
- Type: ISO 6432 Standard Compact Cylinder with Pre-mounted Accessories
- Bore Size: 32mm (±0.13mm manufacturing tolerance)
- Stroke Range: 25-500mm (Standard Package includes 100mm stroke)
- Operating Pressure: 0.1-0.9 MPa (1-9 bar)
- Temperature Range: -20°C to 80°C (NBR seals)/-10°C to 60°C (Polyurethane seals)
- Cushioning: Adjustable Air Cushion at Both Ends
- Mounting Style: Integrated Square Base with 4x M5 Tapped Holes
- Port Size: M5x0.8 (Standard) or NPT1/8 (Optional)
- Rod Thread: M10x1.25 External Thread (Stainless Steel)
- Piston Material: Anodized Aluminum Alloy
- Seal Material: NBR Standard / Polyurethane (PU) Optional
- Weight: 1.65kg (With 100mm Stroke, Including Mounting Hardware)
- Dimensions (LxWxH): 198mm x 80mm x 80mm (At Mid-stroke Position)
- Max Theoretical Force: 226N @ 0.63MPa (Calculated Value)
- Air Consumption: 0.81L per Cycle @ 0.5MPa (Double Acting)
Factory-preassembled pneumatic cylinder solution with integrated mounting base and rod accessories, featuring precision-ground stainless steel rod (chrome-plated, 25μm thickness) and wear-resistant guide rings. The dual cushion adjustment system allows precise end-position deceleration control. Includes pre-installed magnetic piston (D-M9B sensor compatible) for position feedback integration.
- Automatic packaging machine ejector mechanisms
- CNC machine tool chip removal actuators
- Conveyor system divert arm operation
- Semiconductor wafer handling equipment
- Automotive assembly line clamping devices
Installation Note:
Lubricate through air supply (ISO VG32 recommended) during initial setup.
For vertical mounting, use locknut (model ASNU-10) to prevent rod rotation.
Maintain 0.5mm minimum clearance between magnetic sensor and cylinder body.
