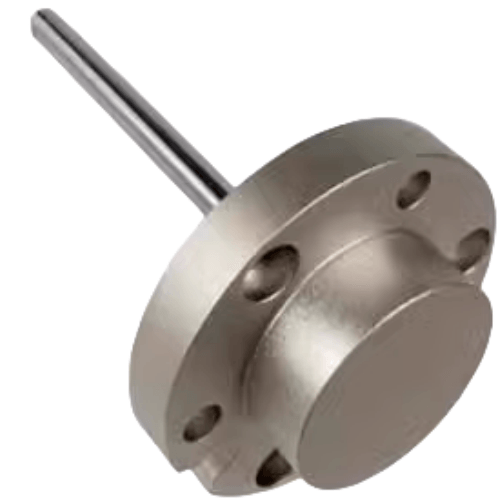

Airtac F-HFCQ-V Spring-Type Push Rod Finished Product Kit F-HFCQ50V
Category: Cylinder Accessories
Brand: AIRTAC
Precision-engineered spring return mechanism with corrosion-resistant plating
Integrated modular design for direct cylinder mounting compatibility
Pre-lubricated components ensuring smooth stroke operation
Standardized interfaces compliant with ISO 6431/6432 pneumatic cylinder specifications
Technical features:
- Double-acting stainless steel return spring
- Hardened guide rod with ±0.01mm concentricity tolerance
- High-cycle PTFE wear-resistant seals
- Ambient temperature range: -10°C to +80°C
AirTAC F-HFCQ-V Spring Return Rod Assembly (F-HFCQ50V) Full Specifications
- Model: F-HFCQ50V
- Type: Spring-return rod assembly with integrated guide
- Stroke: 50mm (standard travel)
- Max thrust force: 200N (spring return force: 60N)
- Operating speed: 50-800mm/s (pressure dependent)
- Operating pressure: 0.1-0.8 MPa
- Temperature range: -10℃ to 80℃
- Spring type: Stainless steel torsion spring
- Rod material: Chrome-plated steel (HRC 45-50 hardness)
- Body material: Anodized aluminum alloy
- Seals: NBR rubber (oil-resistant)
- Mounting type: Dual M5 threaded holes (front flange)
- Weight: 480g ±5%
- Dimensions: 158mm(L) × 32mm(W) × 32mm(H)
- Cushioning: Adjustable air cushion at both ends
- Protection rating: IP54
Precision linear actuator engineered for repetitive push-pull operations, featuring zero-backlash spring return mechanism. The hardened guide structure ensures ±0.1mm repeat positioning accuracy. Integrated lubrication ports allow maintenance without disassembly. Compatible with ISO 6432 standard cylinders.
- Automatic door locking mechanisms in cleanroom equipment
- PCB board clamping/fixturing in SMT machines
- Precision dosage control in pharmaceutical dispensing systems
- Tooling plate positioning in CNC jig fixtures
- Safety interlock activation in packaging machinery
Installation note:
Maintain parallel alignment within 0.2mm/m during mounting. Lubricate guide rail monthly with ISO VG32 hydraulic oil.
Avoid side-load forces exceeding 30N. Pre-charge system with 0.05MPa pressure before full operation.
| Property | Property Value |
|---|---|
| sku | F-HFCQ50V |
| Bore Diameter | <50mm> |
