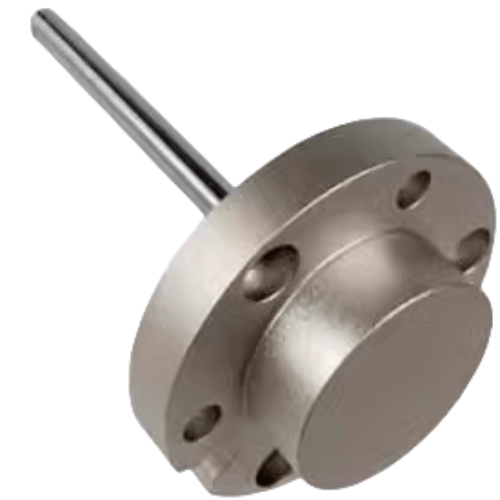

Airtac F-HFCQ-V Spring-Type Push Rod Finished Product Kit F-HFCQ63V
Category: Cylinder Accessories
Brand: AIRTAC
Precision-engineered spring return mechanism with corrosion-resistant plating
Integrated modular design for direct cylinder mounting compatibility
Pre-lubricated components ensuring smooth stroke operation
Standardized interfaces compliant with ISO 6431/6432 pneumatic cylinder specifications
Technical features:
- Double-acting stainless steel return spring
- Hardened guide rod with ±0.01mm concentricity tolerance
- High-cycle PTFE wear-resistant seals
- Ambient temperature range: -10°C to +80°C
AirTAC F-HFCQ-V Spring Return Rod Package F-HFCQ63V Technical Details
- Model: F-HFCQ63V
- Type: Spring return rod assembly (complete package)
- Load capacity: 100-150N (adjustable via spring preload)
- Stroke length options: 20mm/25mm/30mm/40mm/50mm/60mm/80mm/100mm (±0.5mm tolerance)
- Spring type: Stainless steel double torsion spring
- Operating force: 8-12N (push), 5-8N (return)
- Repeat accuracy: ±0.1mm
- Rod material: Chrome-plated stainless steel (SUS304)
- Body material: Anodized aluminum alloy (6063-T5)
- Seal material: High-grade NBR rubber (70±2 Shore A)
- Operating temperature: -10℃ to 80℃ (with silicone grease lubrication)
- Protection rating: IP54 (standard), IP67 optional
- Mounting options: Side flange M5×0.8 or 42mm square base
- Weight: 1.2kg ±3% (including mounting hardware)
- Dimensions: 178mm(H) × 63mm(W) × 48mm(D) (at full extension)
Precision-engineered linear actuator package with integrated spring return mechanism, featuring corrosion-resistant construction and maintenance-free operation. The F-HFCQ63V combines a hardened stainless steel rod with precision ground guide sleeves for smooth reciprocating motion. Includes pre-installed limit switches (2m cable) for position feedback and dual shock absorbers for end-position cushioning.
- Automatic door locking mechanisms in cleanroom environments
- Material handling gate controls in packaging machinery
- Precision positioning in semiconductor wafer handling
- Safety interlock systems for automotive assembly lines
- Actuation of inspection probes in coordinate measuring machines
Installation notes:
- Align rod axis within ±0.5° of load direction
- Apply lithium-based grease (ISO VG 2) every 500,000 cycles
- Maximum side load: 15N (perpendicular to rod axis)
- For vertical mounting: Position spring end downward to prevent debris accumulation
| Property | Property Value |
|---|---|
| sku | F-HFCQ63V |
| Bore Diameter | 63mm |
