Airtac F-HGS Sensor Mount F-HGS10X5H
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
AirTAC F-HGS10X5H Sensor Mounting Bracket Technical Details
- Model: F-HGS10X5H (Standard Series)
- Material: Aluminum alloy 6063-T5 with anodized surface treatment
- Mounting type: Horizontal/vertical dual-orientation clamp
- Compatible sensor diameter: Φ10mm to Φ12.5mm (adjustable)
- Slot spacing: 5mm pitch (M4 threaded holes)
- Fastener: Stainless steel M4×8 hex socket screws (2 pcs included)
- Surface hardness: HV 80-100
- Temperature resistance: -40℃ to +120℃
- Protection rating: IP65 (dust-tight & low-pressure water jet resistant)
- Weight: 68g ±2g (including fasteners)
- Dimensions: 52mm(L) × 38mm(W) × 25mm(H)
- Mounting base thickness: 5mm (CNC-machined flatness ±0.05mm)

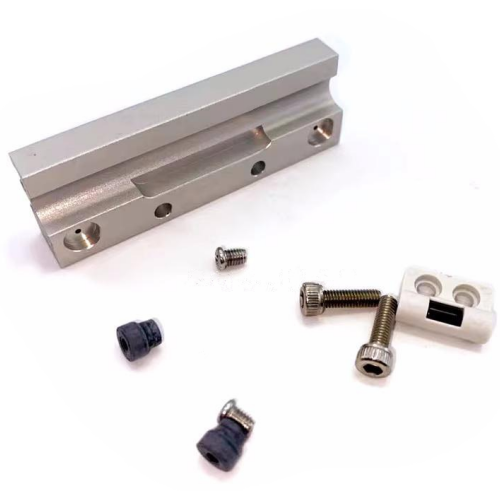

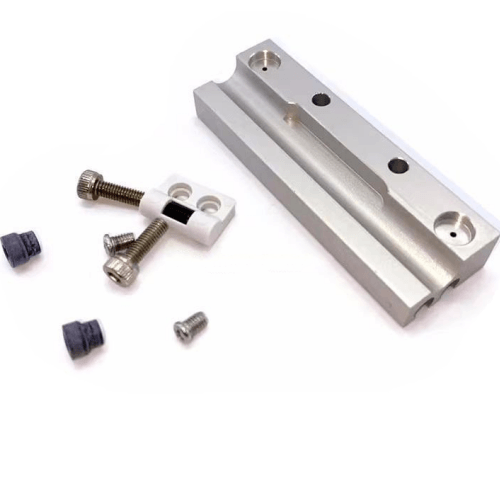

Precision-engineered sensor retention solution featuring micro-adjustment slots for ±2mm positional calibration. The hardened aluminum construction provides vibration damping (tested to 10-2000Hz frequency resistance) while maintaining dimensional stability under thermal stress. Includes anti-loosening thread locker pre-applied on screws.
- Photoelectric/inductive sensor fixation on CNC machine tool guards
- Position feedback device mounting in linear actuator systems
- Conveyor belt proximity switch installations
- Packaging machinery safety interlock configurations
- Collaborative robot end-effector sensing assemblies
Installation protocol:
Apply 0.25-0.3N·m torque during screw tightening. For vertical mounting,
use thread-locking adhesive on both screws. Clean mounting surface with
isopropyl alcohol prior to installation for optimal grip.
| Property | Property Value |
|---|---|
| sku | F-HGS10X5H |
| Bore Diameter | <10mm> |
| Stroke | <5mm> |
