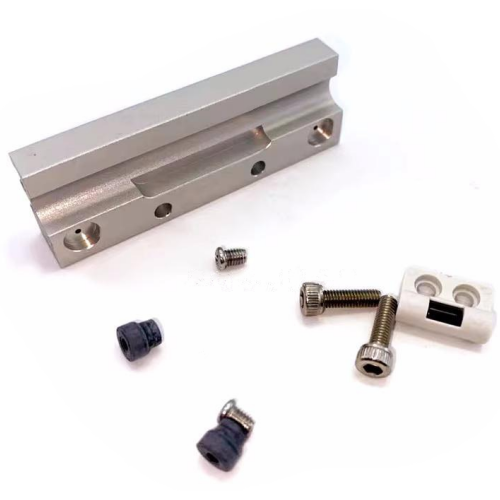

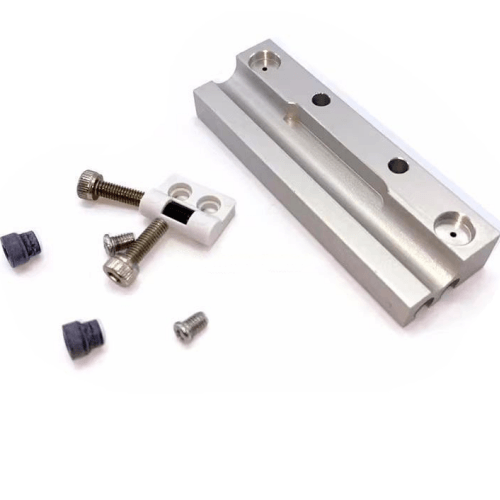

Airtac F-HGS Sensor Mount F-HGS12X5H
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
AirTAC F-HGS12X5H Sensor Mounting Bracket Technical Details
- Model Series: HGS Series Precision Mounts
- Compatible Sensors: 12mm cylindrical inductive/capacitive sensors
- Clamping Range: 5mm adjustable depth (X5 designation)
- Material: Aluminum alloy AL6061-T6 with sandblasted finish
- Surface Treatment: Hard anodized (25μm thickness)
- Mounting Options: Horizontal/Vertical/T-slot installation
- Fastener Type: M5 stainless steel hex socket screws (2 pcs included)
- Torque Specification: 0.8-1.2 N·m (do not exceed 2.0 N·m)
- Weight: 82g ±3% (without sensors)
- Dimensions: 52mm(L) × 24mm(W) × 18mm(H)
- Operating Temp: -30℃ to +85℃ (non-condensing)
- Vibration Resistance: 10-55Hz @ 1.5mm amplitude
- Shock Resistance: 100m/s² (3 axes, 11ms duration)
- IP Rating: IP67 when used with compatible sensors
Precision-engineered mounting solution for industrial automation environments, featuring micro-adjustment slots for ±1.5mm positional calibration. The anti-rotation groove design maintains sensor alignment under vibration. Compatible with DIN rail mounting through optional adapters (sold separately).
- CNC machine tool position verification systems
- Automated packaging line object detection stations
- Robotic arm end-effector proximity sensing
- Semiconductor wafer handling equipment alignment
- AGV (Automated Guided Vehicle) collision prevention systems
Installation protocol:
Apply thread-locking compound to fasteners in high-vibration environments.
Use 0.1mm shim gauge to verify proper sensor seating before final torque application.
Maximum recommended installation altitude: 2000m ASL.
| Property | Property Value |
|---|---|
| sku | F-HGS12X5H |
| Bore Diameter | 12mm |
| Stroke | <5mm> |
