Airtac F-HGS Sensor Mount F-HGS6X10H
$13.46
Regular price
$20.96
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HGS6X10H
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

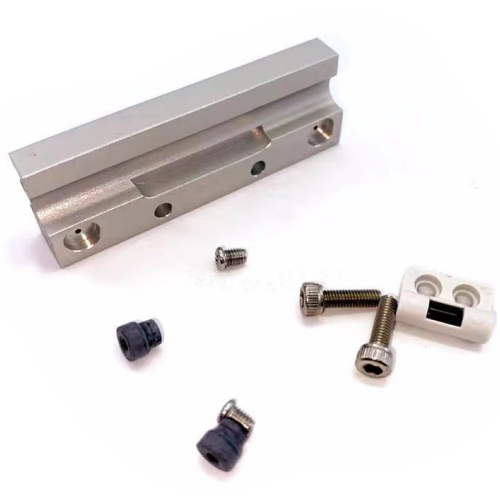

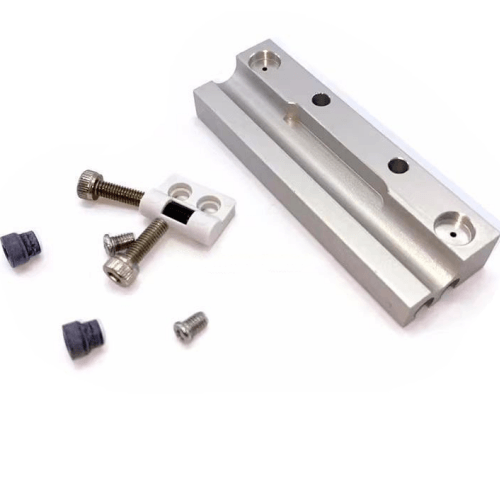

F-HGS Sensor Mounting Bracket Complete Assembly (with Magnet)
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
Installation note:
Apply 2-3Nm torque during sensor locking. Use shim washers when mounting
on curved surfaces (>R50mm). Clean T-slot with isopropyl alcohol before
installation to prevent particulate interference.
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
AirTAC F-HGS6X10H Sensor Mounting Bracket Specifications
- Model: F-HGS6X10H
- Material: Anodized aluminum alloy (AL6063-T5)
- Mounting type: Horizontal slot adjustment
- Sensor compatibility: M5/M8 threaded inductive/proximity sensors
- Slot width: 6mm ±0.1mm
- Mounting height: 10mm
- Thread specification: M4×0.7 mounting screws (included)
- Surface hardness: HV 12-15 (anodized layer)
- Operating temperature: -40℃ to 120℃
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- IP rating: IP67 (when properly installed)
- Torque capacity: Max 0.8N·m tightening torque
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 18mm(W) × 12.5mm(H)
Precision-engineered mounting solution for industrial sensors featuring micro-adjustment capability (±1.5mm lateral shift). The hardened anodized surface provides EMI shielding and chemical resistance. Includes anti-rotation grooves for cable management.
Typical Applications:
- Position verification in CNC machine tooling
- Automated packaging line proximity detection
- Robotic arm end-effector alignment systems
- Conveyor belt object counting setups
- Hydraulic cylinder stroke limit detection
Installation note:
Apply 2-3Nm torque during sensor locking. Use shim washers when mounting
on curved surfaces (>R50mm). Clean T-slot with isopropyl alcohol before
installation to prevent particulate interference.
| Property | Property Value |
|---|---|
| sku | F-HGS6X10H |
| Bore Diameter | <6mm> |
| Stroke | <10mm> |
