Description

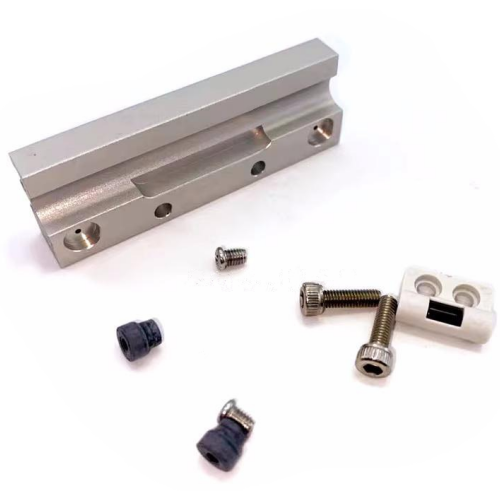

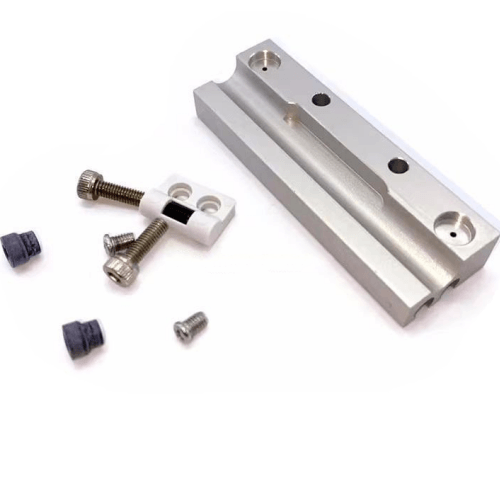

F-HGS Sensor Mounting Bracket Complete Assembly (with Magnet)
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
Installation protocol:
Apply 0.1-0.3mm thick thermal conductive paste between bracket and machine frame for optimal heat dissipation in high-cycle applications (>10,000 operations/day). Use M4×16mm stainless steel screws with Loctite 243 threadlocker.
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
AirTAC F-HGS6X5H Sensor Mounting Bracket Specifications
- Model: F-HGS6X5H
- Series: HGS Heavy-Duty Sensor Mount
- Material: Anodized aluminum alloy (black oxide coating)
- Mounting Type: Horizontal/Vertical dual-orientation
- Compatible Sensor Diameter: Φ6mm to Φ12mm (adjustable)
- Clamping Force: 15-20N·m (torque adjustable via hex key)
- Temperature Resistance: -40℃ to +120℃
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Protection Rating: IP67 (with optional sealing gasket)
- Surface Hardness: HV400±20
- Weight: 185±5g
- Dimensions: 68mm(L) × 42mm(W) × 25mm(H)
- Mounting Hole Pattern: 30mm × 18mm slot spacing (M4 threaded)
Robust modular mounting solution for inductive/proximity sensors in harsh industrial environments. Features multi-axis micro-adjustment capability (±3° tilt, ±2mm lateral shift) through precision machined slots. Includes anti-rotation tabs and vibration-damping silicone inserts.
Typical Applications:
- CNC machine tool position feedback systems
- Automated pallet shuttle detection
- AGV (Automated Guided Vehicle) collision avoidance
- Packaging line product presence verification
- Robotic end-effector alignment confirmation
Installation protocol:
Apply 0.1-0.3mm thick thermal conductive paste between bracket and machine frame for optimal heat dissipation in high-cycle applications (>10,000 operations/day). Use M4×16mm stainless steel screws with Loctite 243 threadlocker.
| Property | Property Value |
|---|---|
| sku | F-HGS6X5H |
| Bore Diameter | <6mm> |
| Stroke | <5mm> |
