Airtac F-HGS Sensor Mount F-HGS8X20H
$13.46
Regular price
$20.96
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HGS8X20H
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

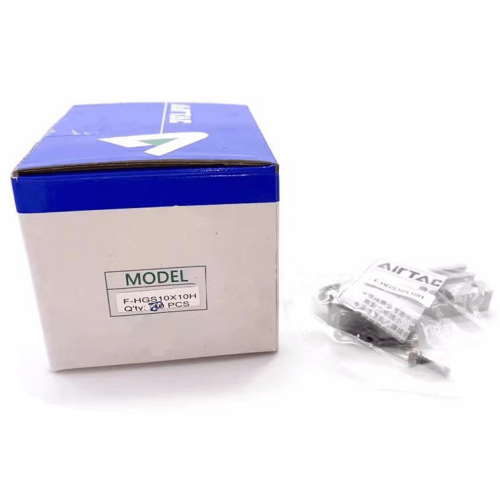

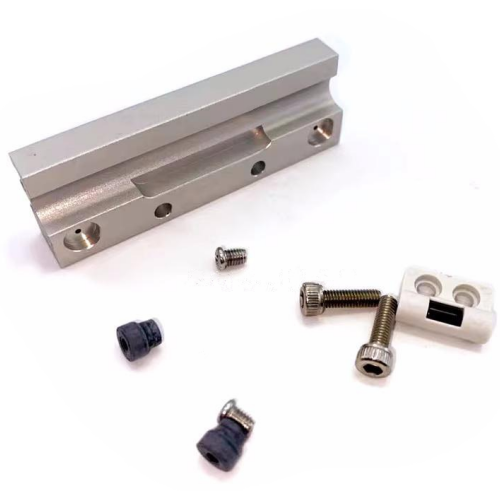

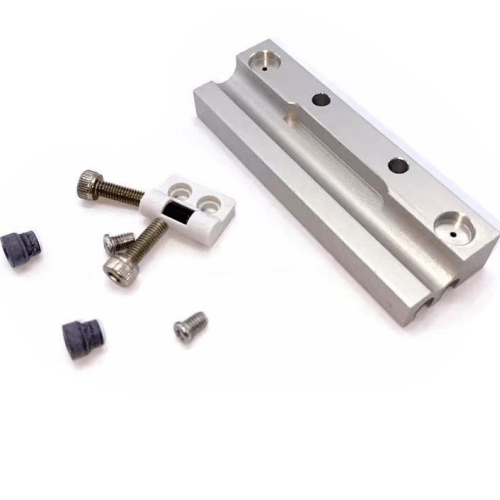

F-HGS Sensor Mounting Bracket Complete Assembly (with Magnet)
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
Installation protocol:
Apply 0.5-0.8Nm torque during set screw tightening. Use thread-locking compound
(medium strength) for high-vibration environments. Align sensor cable exit
direction with channel orientation before final torque application.
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
AirTAC F-HGS8X20H Sensor Mounting Bracket Technical Details
- Model: F-HGS8X20H
- Material: 6063-T5 aluminum alloy (hard anodized surface)
- Mounting thread: M8×1.25 (metric fine)
- Sensor shaft diameter: 8mm ±0.1mm
- Total height: 20mm (base to top collar)
- Base dimensions: 32mm(L) × 24mm(W)
- Mounting hole spacing: 25mm center-to-center
- Weight: 28g ±2g (excluding fasteners)
- Temperature tolerance: -40℃ to +120℃
- Surface hardness: ≥HV400
- Corrosion resistance: 96hr salt spray test passed
- Vibration resistance: 10-2000Hz, 15G acceleration
Precision-machined mounting solution for cylindrical sensors, featuring anti-rotation grooves and dual locking set screws (M4×0.7). The thermal-stable design maintains positional accuracy within ±0.05mm under thermal cycling. Includes integrated cable management channels.
Ideal Applications:
- Industrial robotic end-effector position feedback systems
- CNC machine tool limit switch mounting
- Automated packaging line photoelectric sensors
- Food processing proximity sensor installations (washdown environments)
- Semiconductor wafer handling equipment
Installation protocol:
Apply 0.5-0.8Nm torque during set screw tightening. Use thread-locking compound
(medium strength) for high-vibration environments. Align sensor cable exit
direction with channel orientation before final torque application.
| Property | Property Value |
|---|---|
| sku | F-HGS8X20H |
| Bore Diameter | <8mm> |
| Stroke | <20mm> |
